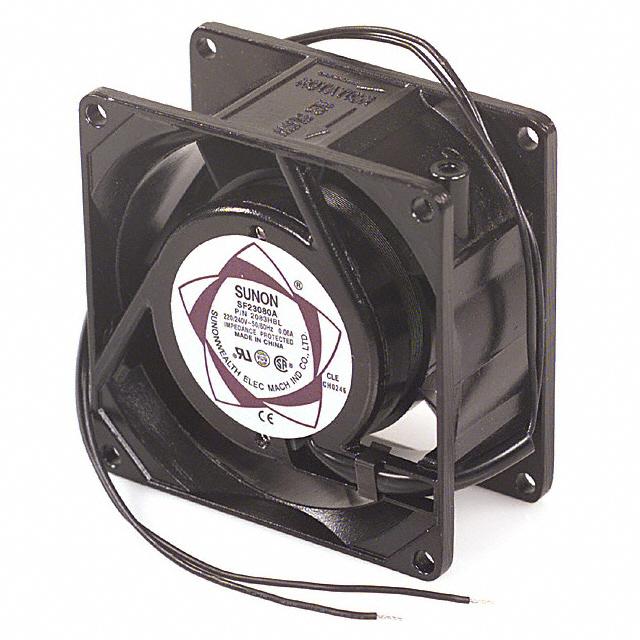

SF23080A-2083HBL.GN
AC Fans
- Manufacturer No:
- SF23080A-2083HBL.GN
- Manufacture:
- Sunon Fans
- Datasheet:
- SF23080A-2083HBL.GN
- Description:
- FAN AXIAL 80X38MM 220/240VAC
In Stock
206 pcs On sales
$26.84
Product Parameter
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 2850 RPM
- Power (Watts)
- 13.50W
- Noise
- 36.5 dB(A)
- Voltage Range
- 185 ~ 245VAC
- Width
- 38.00mm
- Static Pressure
- 0.190 in H2O (47.3 Pa)
- Series
- SF
- Voltage - Rated
- 240VAC
- Weight
- 0.75 lb (340.19 g)
- Lifetime @ Temp.
- -
- Air Flow
- 31.0 CFM (0.868m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Aluminum
- Features
- -
- Size / Dimension
- Square - 80mm L x 80mm H
- Approvals
- CE, CUR, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.080A
