MEC0254V3-000U-A99
DC Brushless Fans (BLDC)
- Manufacturer No:
- MEC0254V3-000U-A99
- Manufacture:
- Sunon Fans
- Datasheet:
- MEC0254V3-000U-A99
- Description:

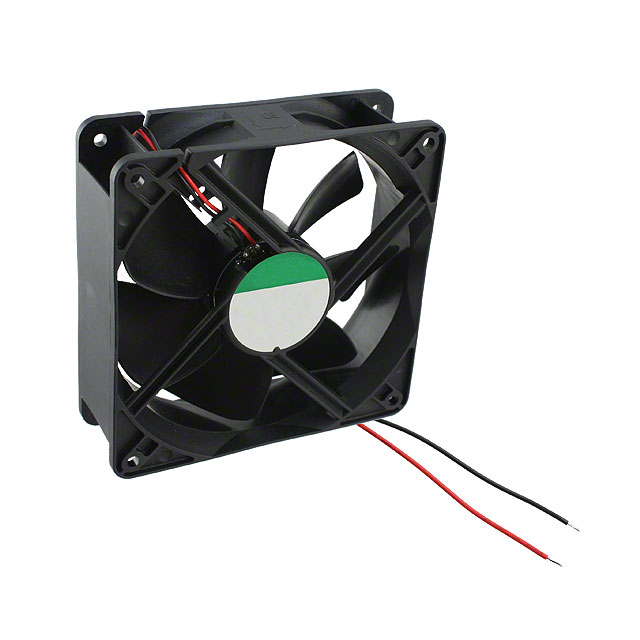

- FAN AXIAL 120X25MM 48VDC WIRE
In Stock
0 pcs On sales
$17.33
Product Parameter
- Weight
- 0.357 lb (161.93 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 75.0 CFM (2.10m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- Auto Restart
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- CE, CUR, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.054A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Vapo-Bearing™
- RPM
- 2200 RPM
- Power (Watts)
- 2.60W
- Noise
- 34.0 dB(A)
- Voltage Range
- 24 ~ 56VDC
- Width
- 25.00mm
- Static Pressure
- 0.160 in H2O (39.8 Pa)
- Series
- MagLev® MEC
- Voltage - Rated
- 48VDC
