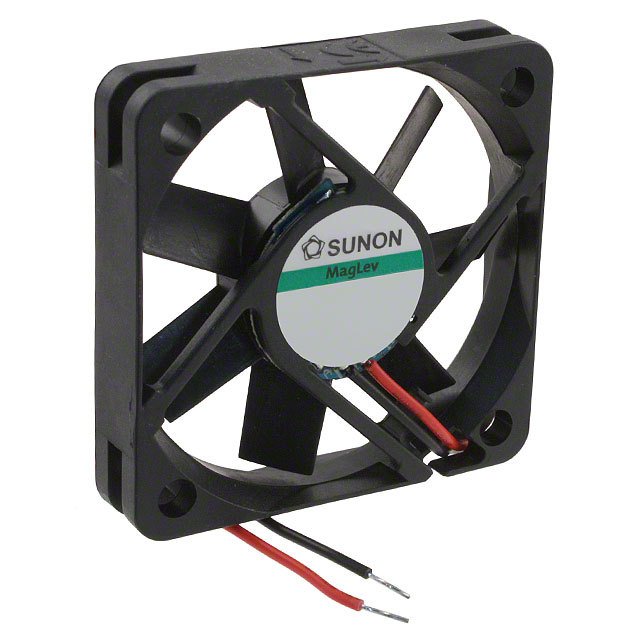

MB50100V2-000U-F99
DC Brushless Fans (BLDC)
- Manufacturer No:
- MB50100V2-000U-F99
- Manufacture:
- Sunon Fans
- Datasheet:
- MB50100V2-000U-F99
- Description:
- FAN AXIAL 50X10MM
In Stock
0 pcs On sales
$6.18
Product Parameter
- RPM
- 4300 RPM
- Power (Watts)
- 1.18W
- Noise
- 26.0 dB(A)
- Voltage Range
- -
- Width
- 10.00mm
- Static Pressure
- 0.110 in H2O (27.4 Pa)
- Series
- MagLev® MB
- Voltage - Rated
- 5VDC
- Weight
- 0.046 lb (20.87 g)
- Lifetime @ Temp.
- -
- Air Flow
- 11.0 CFM (0.308m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- Auto Restart, Locked Rotor Sensor
- Size / Dimension
- Square - 50mm L x 50mm H
- Approvals
- CE, CUR, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.235A
- Termination
- 3 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Vapo-Bearing™
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
MB50100V2-000U-F99 Relevant information
MB500000
PSA8A PROXIMITY SENSOR
MB5001C

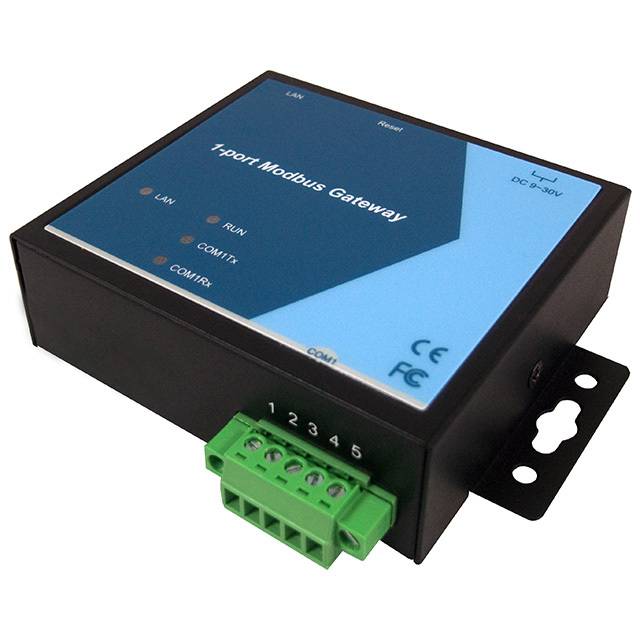

GATEWAY MODBUS RS-232/485
