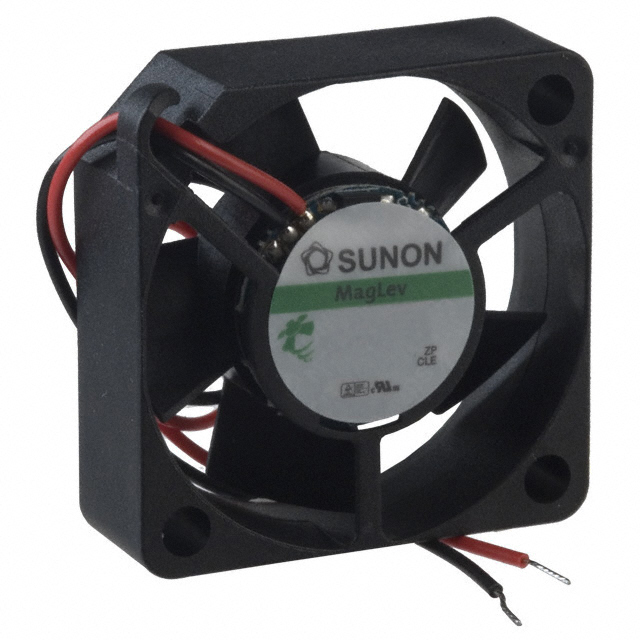

GM1204PQV1-8A.GN
DC Brushless Fans (BLDC)
- Manufacturer No:
- GM1204PQV1-8A.GN
- Manufacture:
- Sunon Fans
- Datasheet:
- GM1204PQV1-8A.GN
- Description:
- FAN BLOWER 40X28MM 12VDC
In Stock
0 pcs On sales
$15.72
Product Parameter
- Noise
- 39.0 dB(A)
- Voltage Range
- 6 ~ 13.8VDC
- Width
- 28.00mm
- Static Pressure
- 0.520 in H2O (129.5 Pa)
- Series
- MagLev® GM
- Voltage - Rated
- 12VDC
- Weight
- -
- Lifetime @ Temp.
- -
- Air Flow
- 15.3 CFM (0.428m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- Auto Restart, Locked Rotor Protection
- Size / Dimension
- Square - 40mm L x 40mm H
- Approvals
- CE, CUR, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.230A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Vapo-Bearing™
- RPM
- 9200 RPM
- Power (Watts)
- 2.80W
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
GM1204PQV1-8A.GN Relevant information

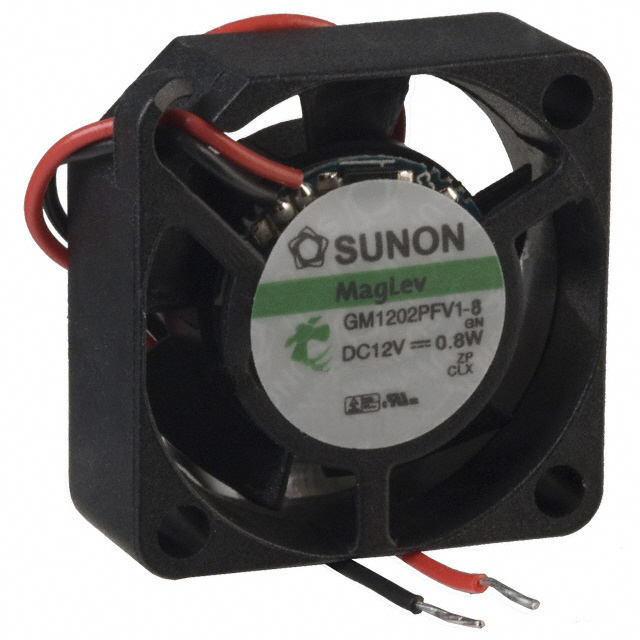

GM1202PFV1-8.GN
FAN AXIAL 25X10MM 12VDC WIRE

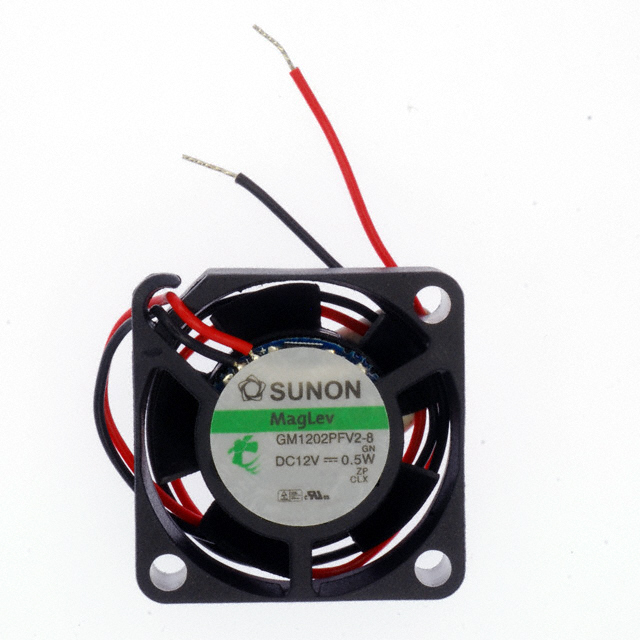

GM1202PFV2-8.GN
FAN AXIAL 25X10MM 12VDC WIRE
GM1203PFV1-8.GN
FAN AXIAL 30X10MM 12VDC WIRE
GM1203PFV2-8.GN
FAN AXIAL 30X10MM 12VDC WIRE
GM1204PQV1-8A.GN
FAN BLOWER 40X28MM 12VDC

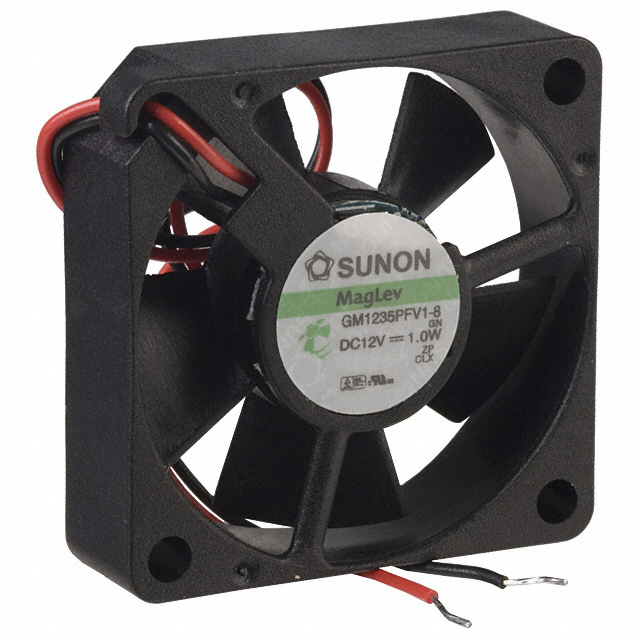

GM1235PFV1-8.GN
FAN AXIAL 35X10MM 12VDC WIRE
