GF80251B1-000U-AE9
DC Brushless Fans (BLDC)
- Manufacturer No:
- GF80251B1-000U-AE9
- Manufacture:
- Sunon Fans
- Datasheet:
- GF80251B1-000U-AE9
- Description:
- FAN 80X25MM 12VDC IP68 60CFM
In Stock
0 pcs On sales
$50.07
Product Parameter
- Series
- GF
- Voltage - Rated
- 12VDC
- Weight
- 0.231 lb (104.78 g)
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Air Flow
- 60.0 CFM (1.68m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- -
- Size / Dimension
- Square - 80mm L x 80mm H
- Approvals
- CE, CUR, TUV, UL
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Part Status
- Active
- Current Rating (Amps)
- 0.330A
- Termination
- 2 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 4800 RPM
- Power (Watts)
- 3.96W
- Noise
- 47.5 dB(A)
- Voltage Range
- 6 ~ 13.8VDC
- Width
- 25.00mm
- Static Pressure
- 0.410 in H2O (102.1 Pa)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
GF80251B1-000U-AE9 Relevant information

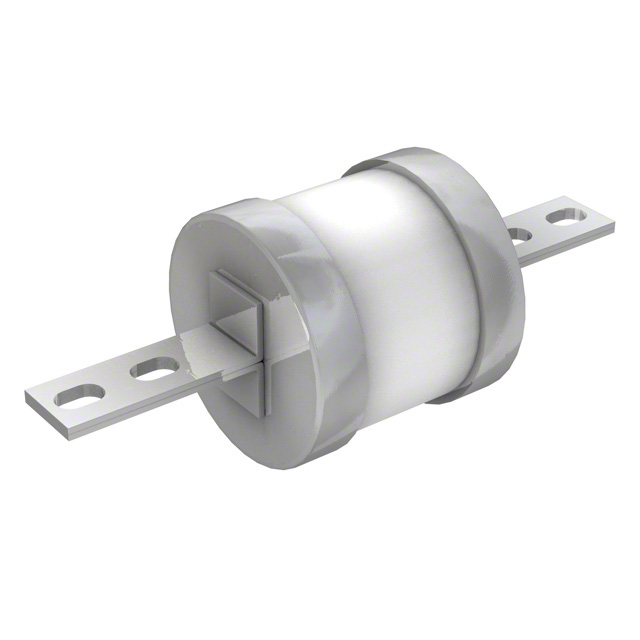

GF800
