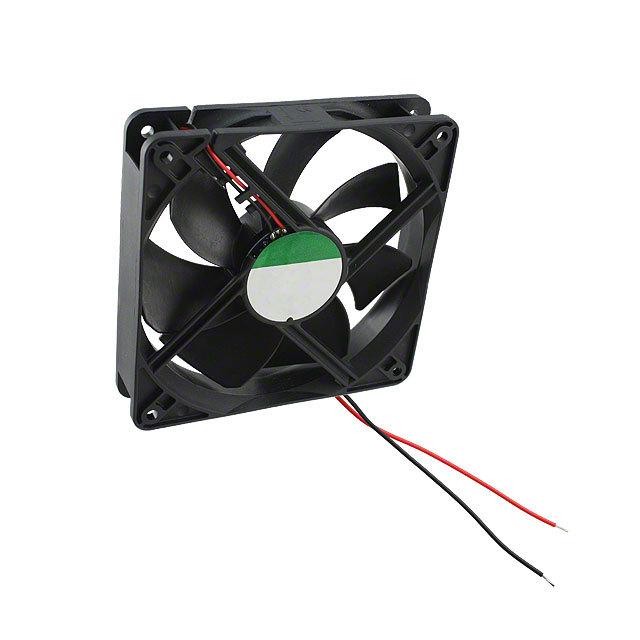

EEC0382B1-000U-F99
DC Brushless Fans (BLDC)
- Manufacturer No:
- EEC0382B1-000U-F99
- Manufacture:
- Sunon Fans
- Datasheet:
- EEC0382B1-000U-F99
- Description:
- FAN AXIAL 120X38MM 24VDC
In Stock
0 pcs On sales
$20.86
Product Parameter
- Part Status
- Active
- Current Rating (Amps)
- 0.400A
- Termination
- 3 Wire Leads
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Bearing Type
- Ball
- RPM
- 3100 RPM
- Power (Watts)
- 9.60W
- Noise
- 48.0 dB(A)
- Voltage Range
- 10 ~ 27.6VDC
- Width
- 38.00mm
- Static Pressure
- 0.360 in H2O (89.6 Pa)
- Series
- EEC
- Voltage - Rated
- 24VDC
- Weight
- 0.472 lb (214.1 g)
- Lifetime @ Temp.
- 100000 Hrs @ 40°C
- Air Flow
- 138.0 CFM (3.86m³/min)
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Fan Type
- Tubeaxial
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Features
- Auto Restart, Locked Rotor Sensor
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- CE, CUR, TUV, UL
- Ingress Protection
- -
