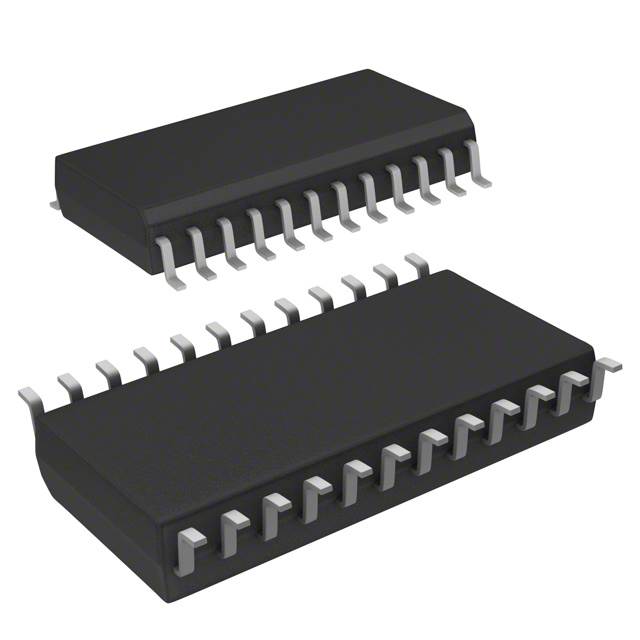

STGAP2DMTR
Isolators - Gate Drivers
- Manufacturer No:
- STGAP2DMTR
- Manufacture:
- STMicroelectronics
- Package:
- 16-SOIC (0.154", 3.90mm Width)
- Datasheet:
- STGAP2DMTR
- Description:
- DGTL ISO
In Stock
382 pcs On sales
$0
Product Parameter
- Packaging
- Digi-Reel®
- Voltage - Output Supply
- 3V ~ 5.5V
- Technology
- Magnetic Coupling
- Current - Output High, Low
- 4A, 4A
- Part Status
- Active
- Pulse Width Distortion (Max)
- 20ns
- Mounting Type
- Surface Mount
- Voltage - Forward (Vf) (Typ)
- -
- Package / Case
- 16-SOIC (0.154", 3.90mm Width)
- Propagation Delay tpLH / tpHL (Max)
- 100ns, 100ns
- Base Part Number
- STGAP
- Common Mode Transient Immunity (Min)
- 100V/ns
- Number of Channels
- 2
- Voltage - Isolation
- 1700VDC
- Current - Peak Output
- -
- Operating Temperature
- -40°C ~ 150°C (TJ)
- Series
- -
- Rise / Fall Time (Typ)
- 30ns, 30ns
- Approvals
- -
- Supplier Device Package
- 16-SO
