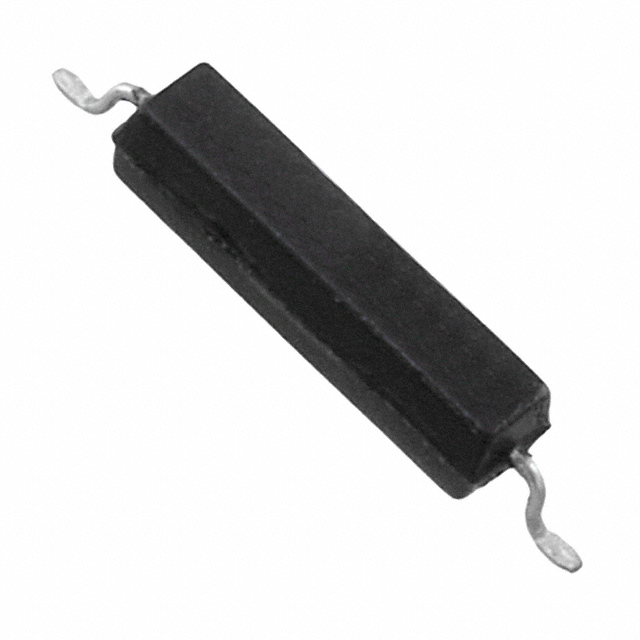

MK17-B-2
Magnetic, Reed Switches
- Manufacturer No:
- MK17-B-2
- Manufacture:
- Standex-Meder Electronics
- Datasheet:
- MK17-B-2
- Description:
- SWITCH REED SPST-NO 500MA 170V
In Stock
7174 pcs On sales
$0
Product Parameter
- Operate Range
- 10 ~ 15AT
- Power - Rated
- 10W
- Type
- Molded Body
- Release Range
- -
- Series
- MK17
- Current - Carry
- 500mA (AC/DC)
- Circuit
- SPST-NO
- Length - Overall
- 0.484" (12.30mm)
- Packaging
- Digi-Reel®
- Termination Style
- Gull Wing
- Capacitance
- 0.4pF
- Height Above Board
- 0.083" (2.10mm)
- Part Status
- Active
- Current - Switching
- 500mA (AC/DC)
- Size - Body
- 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm)
- Operating Temperature
- -40°C ~ 130°C
- Operate Time
- 0.6ms
- Voltage - Switching AC
- 170V
- Release Time
- 0.05ms
- Voltage - Switching DC
- 170V
- Mounting Type
- Surface Mount
