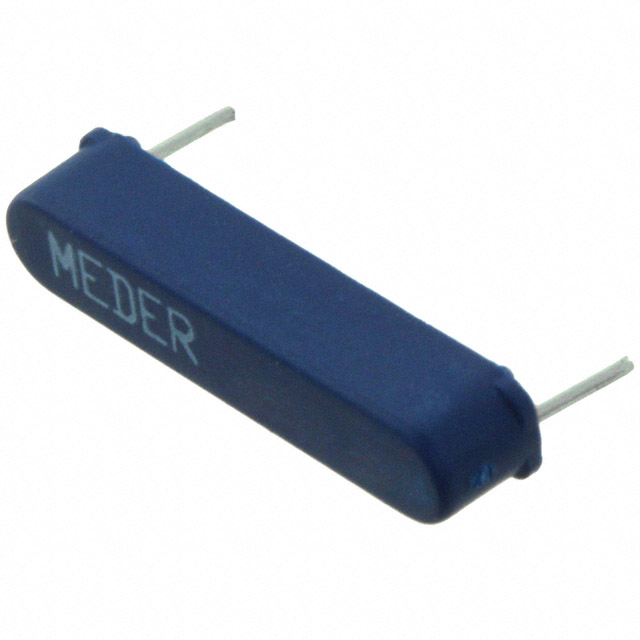

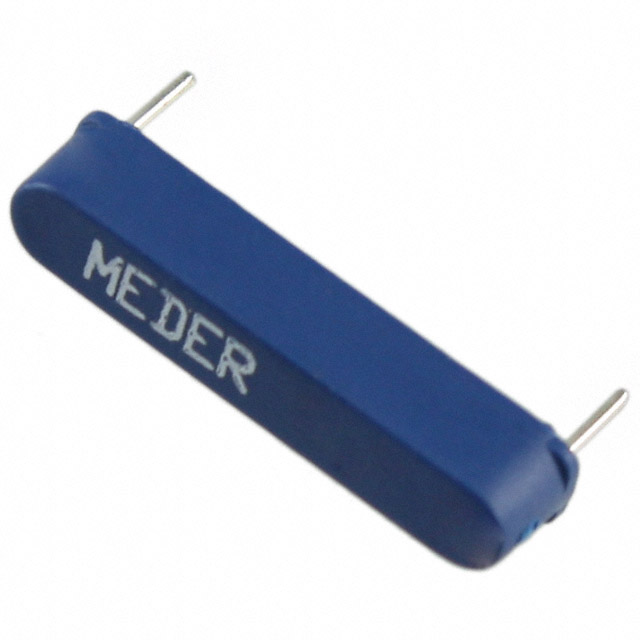

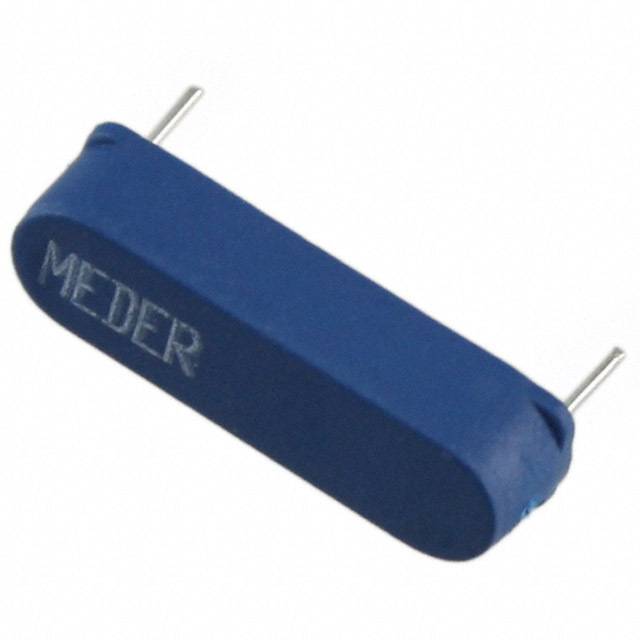

MK06-10-E
Magnetic, Reed Switches
- Manufacturer No:
- MK06-10-E
- Manufacture:
- Standex-Meder Electronics
- Datasheet:
- MK06-10-E
- Description:
- SWITCH REED LATCHING 500MA 200V
In Stock
351 pcs On sales
$6.07
Product Parameter
- Packaging
- Bulk
- Termination Style
- PC Pin
- Capacitance
- 0.3pF
- Height Above Board
- 0.225" (5.72mm)
- Part Status
- Active
- Current - Switching
- 500mA (AC/DC)
- Size - Body
- 1.125" L x 0.150" W x 0.225" H (28.58mm x 3.81mm x 5.72mm)
- Operating Temperature
- -20°C ~ 85°C
- Operate Time
- 0.7ms
- Voltage - Switching AC
- 200V
- Release Time
- 0.05ms
- Voltage - Switching DC
- 200V
- Mounting Type
- Through Hole
- Operate Range
- 4 ~ 12mm
- Power - Rated
- 10W
- Type
- Molded Body
- Release Range
- -
- Series
- MK06
- Current - Carry
- 1A (AC/DC)
- Circuit
- SPST-NO, Latching
- Length - Overall
- 1.125" (28.58mm)
