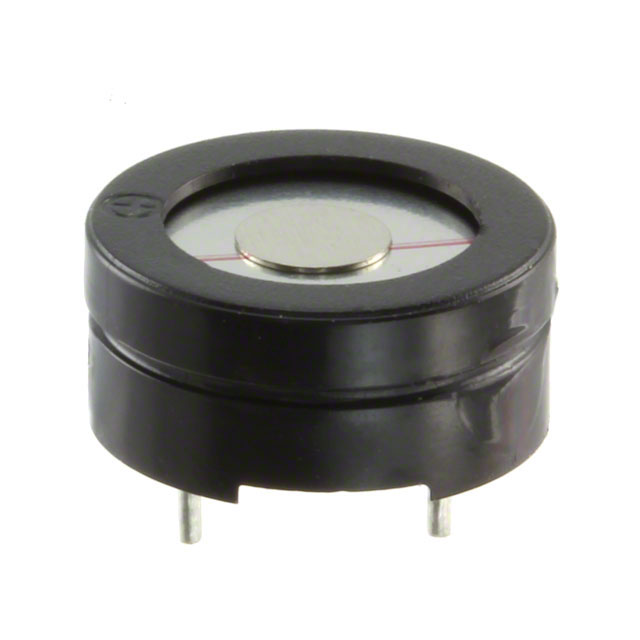

GT-111P
Alarms, Buzzers, and Sirens
- Manufacturer No:
- GT-111P
- Manufacture:
- Soberton, Inc.
- Datasheet:
- GT-111P
- Description:
- AUDIO MAGNETIC XDCR 1-4V TH
In Stock
2381 pcs On sales
$0.57
Product Parameter
- Duration
- -
- Voltage - Rated
- 1.5V
- Approvals
- -
- Current - Supply
- 10mA
- Frequency
- 2.048kHz
- Driver Circuitry
- Transducer, Externally Driven
- Packaging
- -
- Size / Dimension
- 0.472" Dia (12.00mm)
- Input Type
- Zero-Peak Signal
- Height - Seated (Max)
- 0.346" (8.80mm)
- Technology
- Magnetic
- Operating Temperature
- -20°C ~ 60°C
- Part Status
- Active
- Sound Pressure Level (SPL)
- 80dB @ 1.5V, 10cm
- Termination
- PC Pins
- Mounting Type
- Through Hole
- Port Location
- Top
- Series
- GT
- Voltage Range
- 1 ~ 3V
- Ratings
- -
- Operating Mode
- Single Tone
