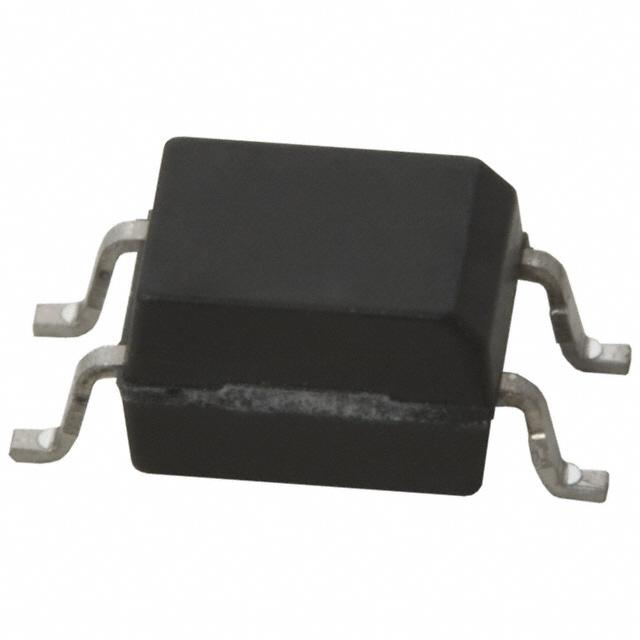

S2S4A00F
Optoisolators - Triac, SCR Output
- Manufacturer No:
- S2S4A00F
- Manufacture:
- SHARP/Socle Technology
- Package:
- 4-SMD
- Datasheet:
- S2S4A00F
- Description:
- OPTOISOLATOR 3.75KV TRIAC 4SMD
In Stock
14961 pcs On sales
$0
Product Parameter
- Current - Hold (Ih)
- 3.5mA
- Voltage - Isolation
- 3750Vrms
- Series
- -
- Voltage - Off State
- 600V
- Approvals
- CSA, UR
- Operating Temperature
- -30°C ~ 100°C
- Packaging
- Digi-Reel®
- Zero Crossing Circuit
- Yes
- Output Type
- Triac
- Supplier Device Package
- 4-SMD
- Part Status
- Active
- Voltage - Forward (Vf) (Typ)
- 1.2V
- Turn On Time
- 50µs (Max)
- Current - DC Forward (If) (Max)
- 50mA
- Mounting Type
- Surface Mount
- Current - LED Trigger (Ift) (Max)
- 10mA
- Package / Case
- 4-SMD
- Current - On State (It (RMS)) (Max)
- 50mA
- Number of Channels
- 1
- Static dV/dt (Min)
- 100V/µs
