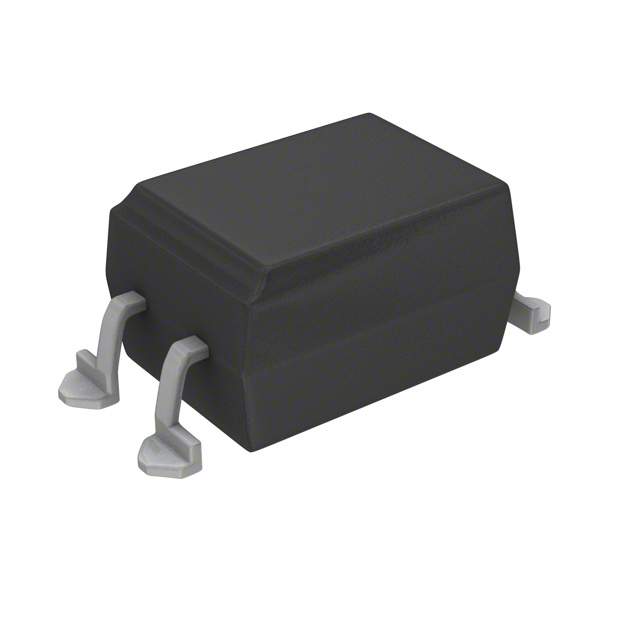

PC4H510NIP
Optoisolators - Transistor, Photovoltaic Output
- Manufacturer No:
- PC4H510NIP
- Manufacture:
- Sharp Microelectronics
- Package:
- 4-SOIC (0.209", 5.30mm Width)
- Datasheet:
- PC4H510NIP
- Description:
- OPTOISOLATOR 2.5KV TRANS 4SMD
In Stock
0 pcs On sales
$0
Product Parameter
- Voltage - Isolation
- 2500Vrms
- Vce Saturation (Max)
- 300mV
- Operating Temperature
- -25°C ~ 100°C
- Rise / Fall Time (Typ)
- 4µs, 5µs
- Series
- -
- Voltage - Output (Max)
- 350V
- Packaging
- Tape & Reel (TR)
- Supplier Device Package
- 4-SOP
- Input Type
- DC
- Current - Output / Channel
- 50mA
- Output Type
- Transistor
- Current Transfer Ratio (Max)
- 240% @ 5mA
- Part Status
- Obsolete
- Current Transfer Ratio (Min)
- 40% @ 5mA
- Mounting Type
- Surface Mount
- Voltage - Forward (Vf) (Typ)
- 1.2V
- Package / Case
- 4-SOIC (0.209", 5.30mm Width)
- Turn On / Turn Off Time (Typ)
- -
- Number of Channels
- 1
- Current - DC Forward (If) (Max)
- 50mA
