9W2TGA48P0G001
DC Brushless Fans (BLDC)
- Manufacturer No:
- 9W2TGA48P0G001
- Manufacture:
- Sanyo Denki America Inc.
- Datasheet:
- 9W2TGA48P0G001
- Description:

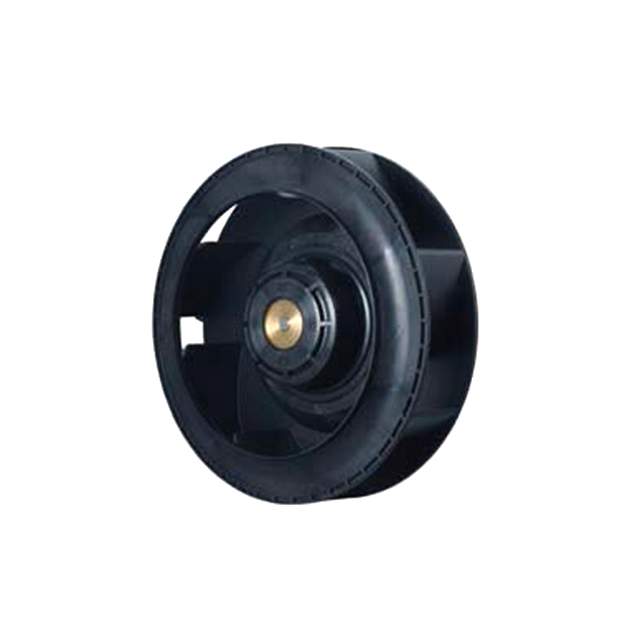

- FAN 175X69MM 48VDC IP56 CENT
In Stock
8 pcs On sales
$244.3
Product Parameter
- Bearing Type
- Ball
- RPM
- 5700 RPM
- Power (Watts)
- 185W
- Noise
- 80.0 dB(A)
- Voltage Range
- 36 ~ 72VDC
- Width
- 69.00mm
- Static Pressure
- 4.420 in H2O (1100.0 Pa)
- Series
- San Ace 175W
- Voltage - Rated
- 48VDC
- Weight
- 2.2 lbs (997.9 g)
- Lifetime @ Temp.
- Varies Based on Temperature
- Air Flow
- 611.0 CFM (17.11m³/min)
- Material - Blade
- Plastic
- Fan Type
- Motorized Impellers
- Material - Frame
- Aluminum
- Features
- PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Round - 175mm Dia
- Approvals
- -
- Ingress Protection
- IP56 - Dust Protected, Water Resistant
- Part Status
- Active
- Current Rating (Amps)
- 3.85A
- Termination
- 4 Wire Leads
- Operating Temperature
- -22 ~ 140°F (-30 ~ 60°C)
