9W1TJ24P0H61
DC Brushless Fans (BLDC)
- Manufacturer No:
- 9W1TJ24P0H61
- Manufacture:
- Sanyo Denki America Inc.
- Datasheet:
- 9W1TJ24P0H61
- Description:
- DC AXIAL FAN 133X91MM PWM
In Stock
0 pcs On sales
$0
Product Parameter
- Series
- San Ace 133W
- Lifetime @ Temp.
- Varies Based on Temperature
- Air Flow
- 225.0 CFM (6.30m³/min)
- Material - Blade
- Plastic
- Fan Type
- Blower, Centrifugal
- Material - Frame
- Aluminum
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Size / Dimension
- Round - 133mm Dia
- Approvals
- CSA, TUV, UL
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Part Status
- Active
- Current Rating (Amps)
- 1.20A
- Termination
- 4 Wire Leads
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
- Bearing Type
- Ball
- Power (Watts)
- 28.80W
- RPM
- 4150 RPM
- Voltage Range
- 20.4 ~ 27.6VDC
- Noise
- 61.0 dB(A)
- Static Pressure
- 1.590 in H2O (396.1 Pa)
- Width
- 91.00mm
- Voltage - Rated
- 24VDC
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
9W1TJ24P0H61 Relevant information
9W1TJ24P0H61
DC AXIAL FAN 133X91MM PWM
9W1TJ48P0H61
DC AXIAL FAN 133X91MM PWM

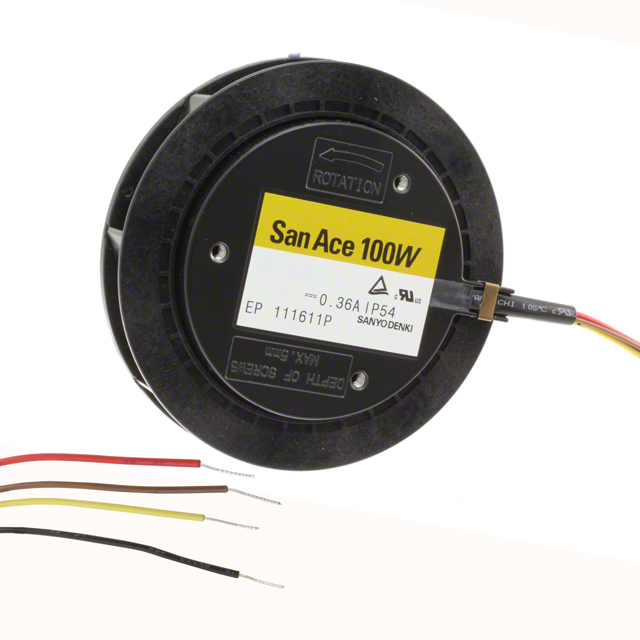

9W1TM48P4G01
FAN 100X25MM 48VDC IP54 CENT

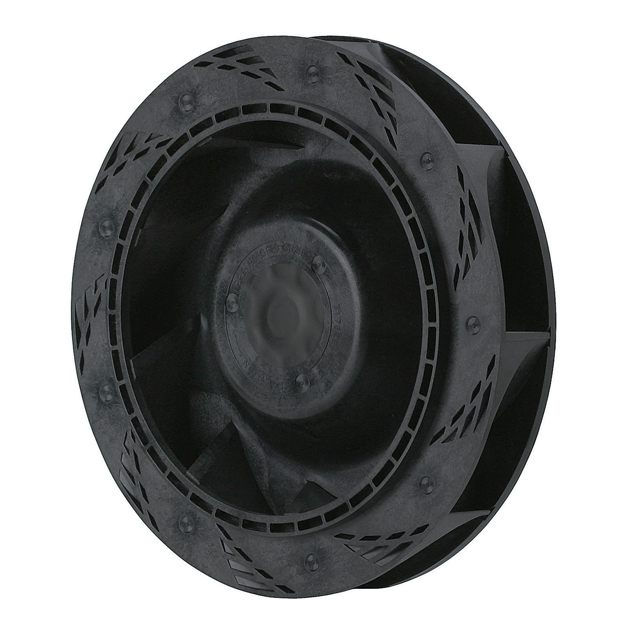

9W1TN48P1H01
