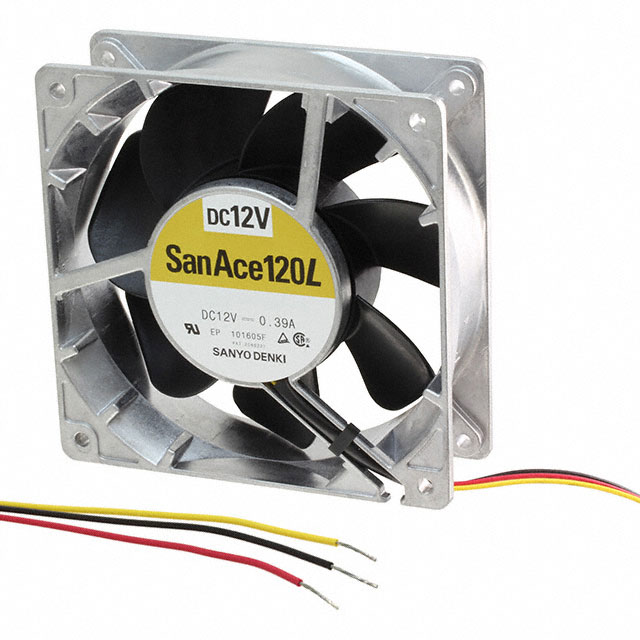

9LB1224H102
DC Brushless Fans (BLDC)
- Manufacturer No:
- 9LB1224H102
- Manufacture:
- Sanyo Denki America Inc.
- Datasheet:
- 9LB1224H102
- Description:
- FAN 120X38MM 24VDC RBLS
In Stock
28 pcs On sales
$71.77
Product Parameter
- Approvals
- CSA, TUV, UR
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 4.56W
- RPM
- 2600 RPM
- Voltage Range
- 20.4 ~ 27.6VDC
- Noise
- 39.0 dB(A)
- Voltage - Rated
- 24VDC
- Width
- 38.00mm
- Lifetime @ Temp.
- 200000 Hrs @ 60°C
- Series
- San Ace 120L
- Material - Blade
- Plastic
- Air Flow
- 102.4 CFM (2.87m³/min)
- Material - Frame
- Aluminum
- Fan Type
- Tubeaxial
- Size / Dimension
- Square - 119mm L x 119mm H
- Features
- -
- Ingress Protection
- -
