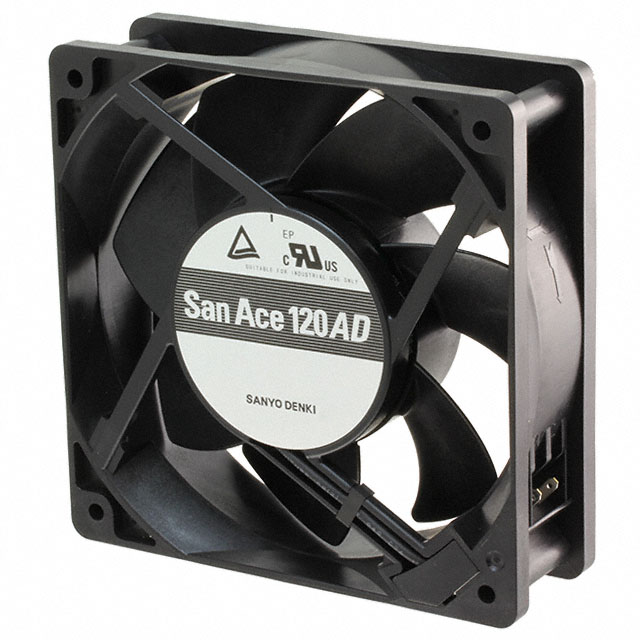

9AD1201H1H1
AC Fans
- Manufacturer No:
- 9AD1201H1H1
- Manufacture:
- Sanyo Denki America Inc.
- Datasheet:
- 9AD1201H1H1
- Description:
- FAN 120X38MM 90/264VAC RBLS LSS
In Stock
0 pcs On sales
$41.55
Product Parameter
- Fan Type
- Tubeaxial
- Material - Frame
- Plastic
- Features
- Locked Rotor Sensor
- Size / Dimension
- Square - 120mm L x 120mm H
- Approvals
- CE, CSA, PSE, TUV, UL
- Ingress Protection
- -
- Part Status
- Active
- Current Rating (Amps)
- 0.080A
- Termination
- 2 Position Rectangular Connector
- Operating Temperature
- -4 ~ 167°F (-20 ~ 75°C)
- Bearing Type
- Ball
- RPM
- 3250 RPM
- Power (Watts)
- 4.40W
- Noise
- 42.0 dB(A)
- Voltage Range
- 90 ~ 240VAC
- Width
- 38.00mm
- Static Pressure
- 0.340 in H2O (84.7 Pa)
- Series
- San Ace 120AD
- Voltage - Rated
- 100 ~ 240VAC
- Weight
- 0.639 lb (289.85 g)
- Lifetime @ Temp.
- 60000 Hrs @ 60°C
- Air Flow
- 106.0 CFM (2.97m³/min)
- Material - Blade
- Plastic
