ZF5-15-01-T-WT-TR
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- ZF5-15-01-T-WT-TR
- Manufacture:
- Samtec, Inc.
- Datasheet:
- ZF5-15-01-T-WT-TR
- Description:
- CONN FFC BOTTOM 15POS 0.50MM R/A
In Stock
0 pcs On sales
$0
Product Parameter
- Series
- ZF5
- Voltage Rating
- -
- Material Flammability Rating
- -
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature
- Slide Lock
- Packaging
- Tape & Reel (TR)
- Contact Material
- Phosphor Bronze
- Part Status
- Obsolete
- Actuator Material
- -
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- Natural
- Height Above Board
- 0.079" (2.00mm)
- Mating Cycles
- -
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 15
- Actuator Color
- -
- Current Rating (Amps)
- -
- Cable End Type
- Straight
- Operating Temperature
- -55°C ~ 105°C
- Contact Finish
- Tin
- Connector/Contact Type
- Contacts, Bottom
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FFC
- Contact Finish Thickness
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
ZF5-15-01-T-WT-TR Relevant information
ZF5-10-03-T-WT
CONN FFC VERT 10POS 0.50MM SMD
ZF5-15-01-T-WT-TR
CONN FFC BOTTOM 15POS 0.50MM R/A

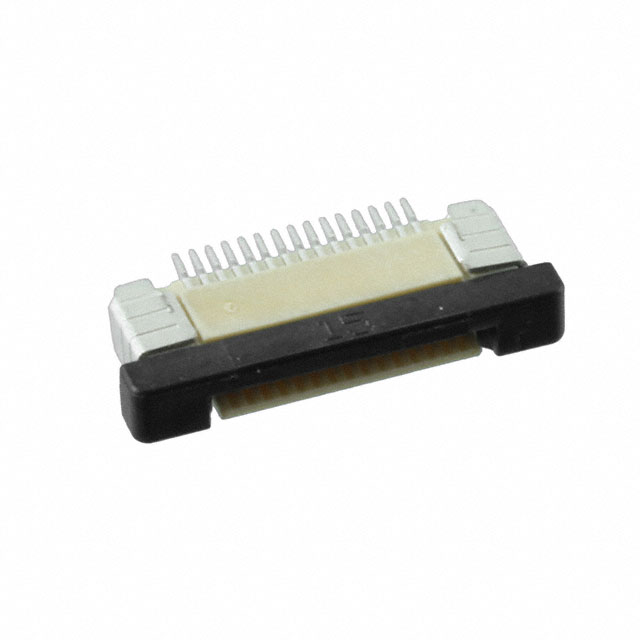

ZF5-15-02-T-WT
