ZF1-04-02-T-WT
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- ZF1-04-02-T-WT
- Manufacture:
- Samtec, Inc.
- Datasheet:
- ZF1-04-02-T-WT
- Description:
- ZERO INSERTION FORCE 1MM ASSEMBL
In Stock
0 pcs On sales
$0.28
Product Parameter
- Packaging
- Tube
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Actuator Material
- Polyphenylene Sulfide (PPS)
- Termination
- Solder
- FFC, FCB Thickness
- -
- Housing Color
- Natural
- Height Above Board
- 0.118" (3.00mm)
- Mating Cycles
- -
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 4
- Actuator Color
- Black
- Current Rating (Amps)
- -
- Cable End Type
- -
- Operating Temperature
- -55°C ~ 105°C
- Contact Finish
- Tin
- Connector/Contact Type
- Contacts, Top
- Pitch
- 0.039" (1.00mm)
- Flat Flex Type
- FFC
- Contact Finish Thickness
- -
- Series
- ZF1
- Voltage Rating
- -
- Material Flammability Rating
- UL94 V-2
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature
- Slide Lock
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
ZF1-04-02-T-WT Relevant information
ZF1-04-02-T-WT
ZERO INSERTION FORCE 1MM ASSEMBL

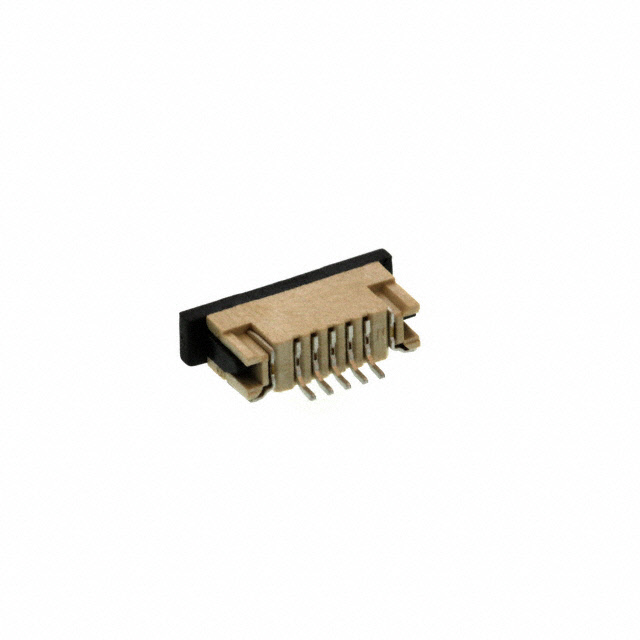

ZF1-05-01-T-WT
ZERO INSERTION FORCE 1MM ASSY

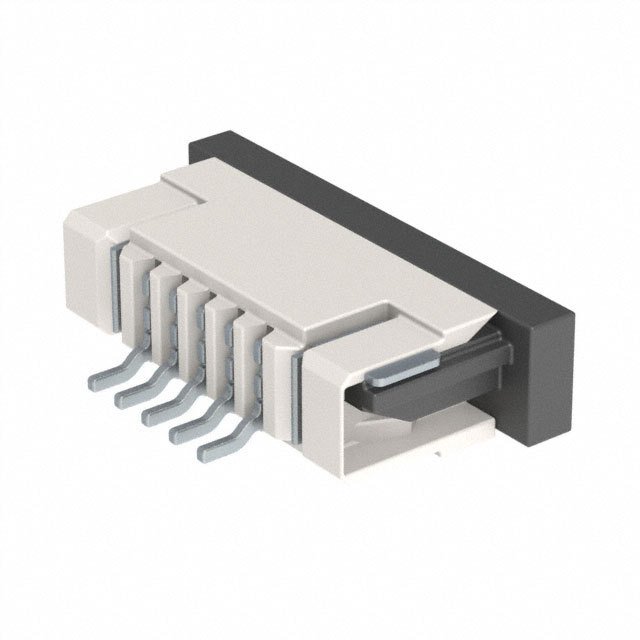

ZF1-05-01-T-WT-TR
ZERO INSERTION FORCE 1MM ASSEMBL

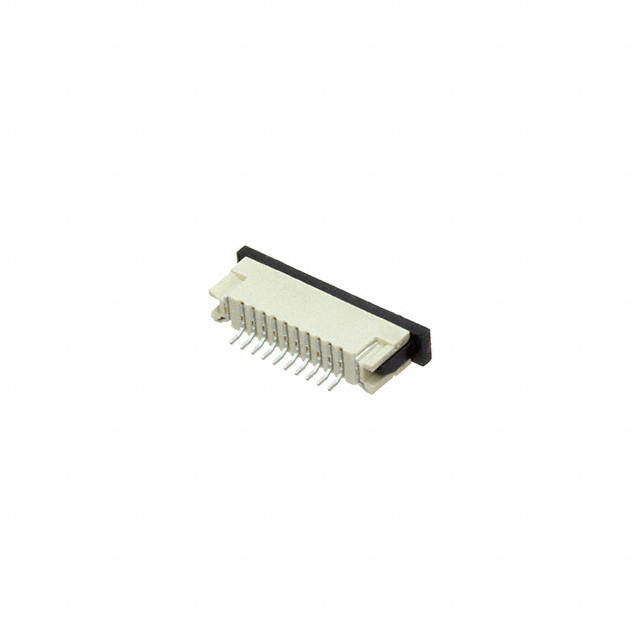

ZF1-10-01-T-WT
CONN FFC BOTTOM 10POS 1.00MM R/A
ZF1-10-01-T-WT-TR
ZERO INSERTION FORCE 1MM ASSY

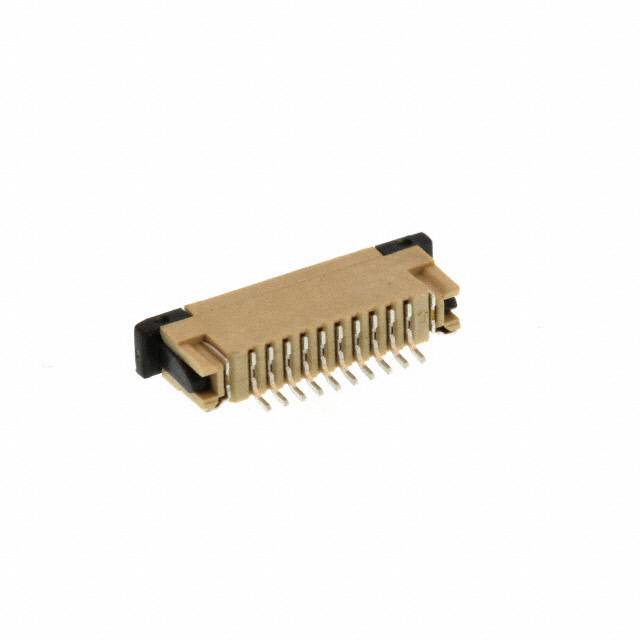

ZF1-10-02-T-WT
