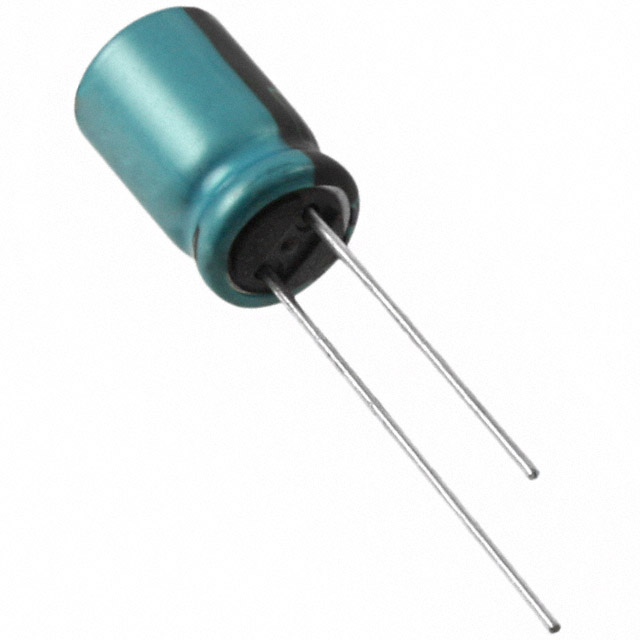

35RX30100M8X11.5

Aluminum Electrolytic Capacitors

Manufacturer No:
35RX30100M8X11.5
Manufacture:
Rubycon
Package:
Radial, Can
Datasheet:
35RX30100M8X11.5
Description:
CAP ALUM 100UF 20% 35V RADIAL

In Stock

9774 pcs On sales

$0.46

Product Parameter

Series
RX30
Voltage - Rated
35V
Ratings
AEC-Q200
Lifetime @ Temp.
2000 Hrs @ 130°C
Impedance
220 mOhms
Size / Dimension
0.315" Dia (8.00mm)
Packaging
Bulk
Height - Seated (Max)
0.532" (13.50mm)
Tolerance
±20%
Operating Temperature
-40°C ~ 130°C
Capacitance
100µF
Surface Mount Land Size
-
Part Status
Active
Ripple Current @ Low Frequency
252mA @ 120Hz
Applications
Automotive
Ripple Current @ High Frequency
360mA @ 100kHz
Lead Spacing
0.138" (3.50mm)
ESR (Equivalent Series Resistance)
-
Polarization
Polar
Mounting Type
Through Hole
Package / Case
Radial, Can
