25TLV1000M12.5X13.5
Aluminum Electrolytic Capacitors
- Manufacturer No:
- 25TLV1000M12.5X13.5
- Manufacture:
- Rubycon
- Package:
- Radial, Can - SMD
- Datasheet:
- 25TLV1000M12.5X13.5
- Description:
- CAP ALUM 1000UF 20% 25V SMD
In Stock
5396 pcs On sales
$1.77
Product Parameter
- Package / Case
- Radial, Can - SMD
- Series
- TLV
- Voltage - Rated
- 25V
- Ratings
- AEC-Q200
- Lifetime @ Temp.
- 5000 Hrs @ 105°C
- Impedance
- 65 mOhms
- Size / Dimension
- 0.492" Dia (12.50mm)
- Packaging
- Cut Tape (CT)
- Height - Seated (Max)
- 0.551" (14.00mm)
- Tolerance
- ±20%
- Operating Temperature
- -55°C ~ 105°C
- Capacitance
- 1000µF
- Surface Mount Land Size
- 0.512" L x 0.512" W (13.00mm x 13.00mm)
- Part Status
- Active
- Ripple Current @ Low Frequency
- 660mA @ 120Hz
- Applications
- Automotive
- Ripple Current @ High Frequency
- 1.1A @ 100kHz
- Lead Spacing
- -
- ESR (Equivalent Series Resistance)
- -
- Polarization
- Polar
- Mounting Type
- Surface Mount
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
25TLV1000M12.5X13.5 Relevant information
25TLV1000M12.5X13.5
CAP ALUM 1000UF 20% 25V SMD
25TLV1500M16X16.5
CAP ALUM 1500UF 20% 25V SMD
25TLV2200M18X16.5
CAP ALUM 2200UF 20% 25V SMD
25TLV220M8X10.5
CAP ALUM 220UF 20% 25V SMD

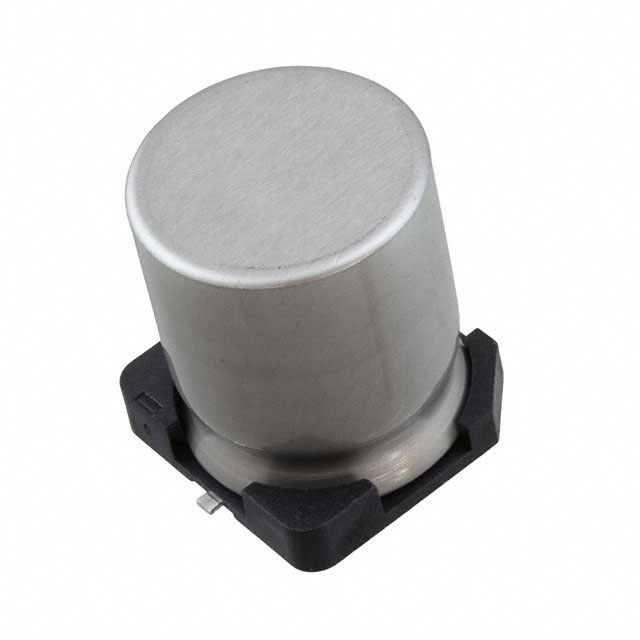

25TLV3300M18X21.5
