51S201-006N5
Coaxial Connectors (RF)
- Manufacturer No:
- 51S201-006N5
- Manufacture:
- Rosenberger
- Datasheet:
- 51S201-006N5
- Description:
- CONN BNC PLUG R/A 50OHM SOLDER
In Stock
35 pcs On sales
$22.05
Product Parameter
- Impedance
- 50Ohm
- Voltage Rating
- 400V
- Packaging
- Bulk
- Connector Style
- BNC
- Body Finish
- White Bronze
- Frequency - Max
- 10GHz
- Cable Group
- RG-58C, 141
- Number of Ports
- 1
- Part Status
- Active
- Mounting Feature
- -
- Body Material
- Brass
- Ingress Protection
- -
- Housing Color
- Silver
- Shield Termination
- Clamp
- Mating Cycles
- 500
- Contact Termination
- Solder
- Mounting Type
- Free Hanging (In-Line), Right Angle
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Series
- -
- Connector Type
- Plug, Male Pin
- Operating Temperature
- -55°C ~ 155°C
- Features
- -
- Fastening Type
- Bayonet Lock
- Center Contact Plating
- Gold
- Includes
- 6 pcs - 1 Connector, 1 Clamp, 1 End Cap, 1 Gasket, 1 Nut, 1 Washer
- Insertion Loss
- -
- Center Contact Material
- Bronze
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
51S201-006N5 Relevant information
51S201-006N5
CONN BNC PLUG R/A 50OHM SOLDER

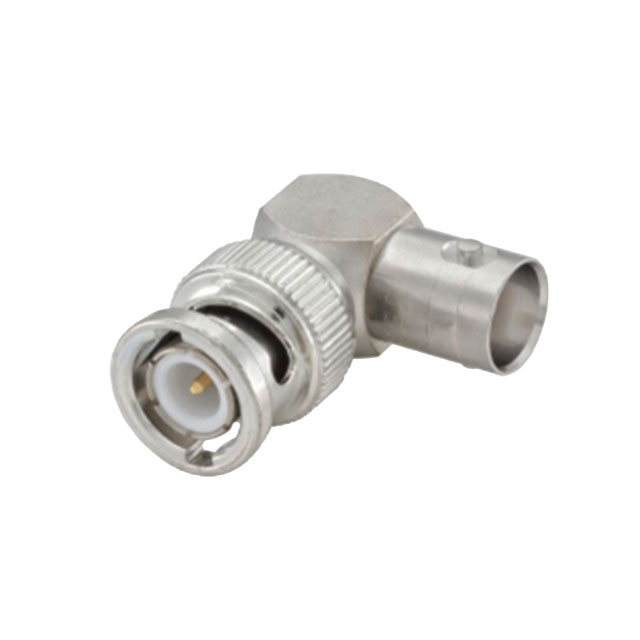

51S201-K00N5
CONN ADAPT PLUG-JACK BNC 50 OHM

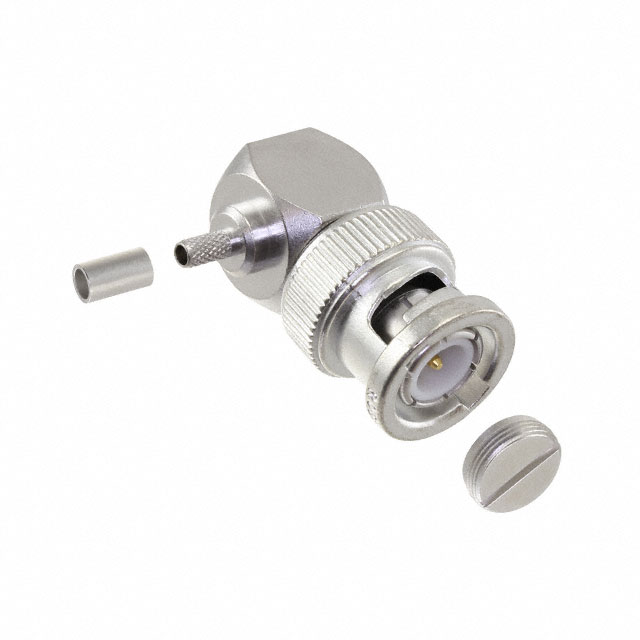

51S207-302N5
CONN BNC PLUG R/A 50OHM SOLDER
51S207-303N5
BNC RIGHT ANGLE PLUG

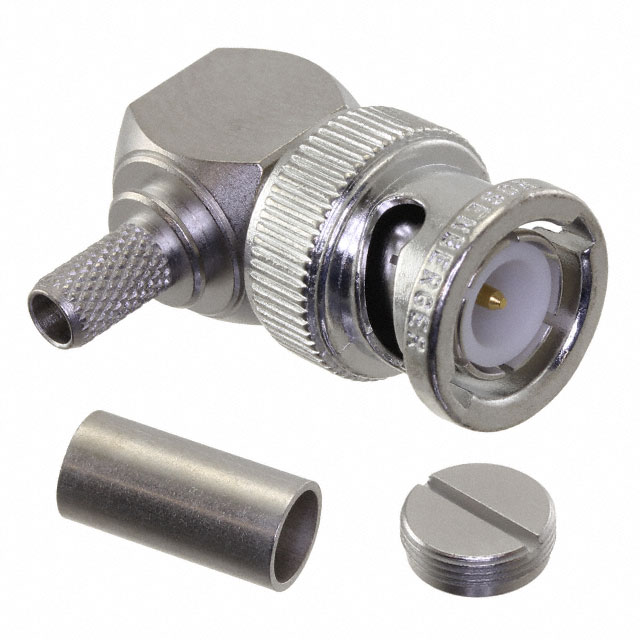

51S207-306N5
CONN BNC PLUG R/A 50OHM SOLDER

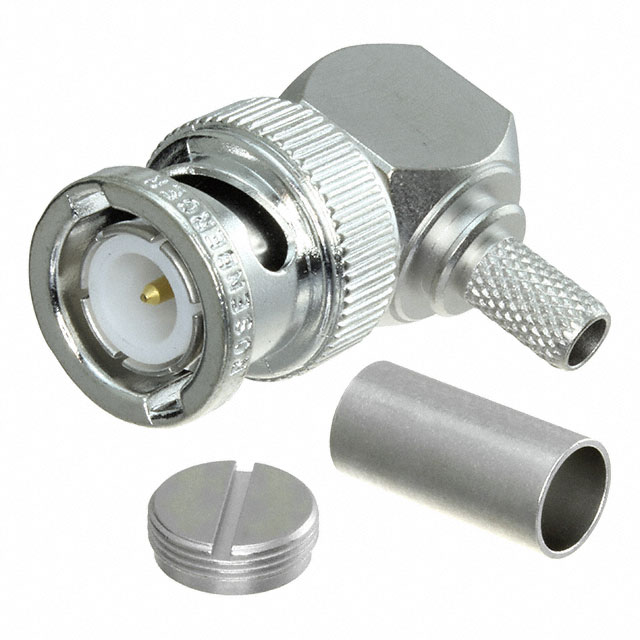

51S207-308N5
