32K603-200L5
Coaxial Connectors (RF)
- Manufacturer No:
- 32K603-200L5
- Manufacture:
- Rosenberger
- Datasheet:
- 32K603-200L5
- Description:
- CONN SMA JACK STR 50OHM SOLDER
In Stock
0 pcs On sales
$0
Product Parameter
- Cable Group
- -
- Number of Ports
- 1
- Part Status
- Obsolete
- Mounting Feature
- Bulkhead - Front Side Nut
- Body Material
- Beryllium Copper
- Ingress Protection
- -
- Housing Color
- Gold
- Shield Termination
- Solder
- Mating Cycles
- 500
- Contact Termination
- Solder Cup
- Mounting Type
- Panel Mount
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Series
- -
- Connector Type
- Jack, Female Socket
- Operating Temperature
- -65°C ~ 165°C
- Features
- -
- Fastening Type
- Threaded
- Center Contact Plating
- Gold
- Includes
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Insertion Loss
- -
- Center Contact Material
- Beryllium Copper
- Impedance
- 50Ohm
- Voltage Rating
- 480V
- Packaging
- Bulk
- Connector Style
- SMA
- Body Finish
- Gold
- Frequency - Max
- 18GHz
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
32K603-200L5 Relevant information

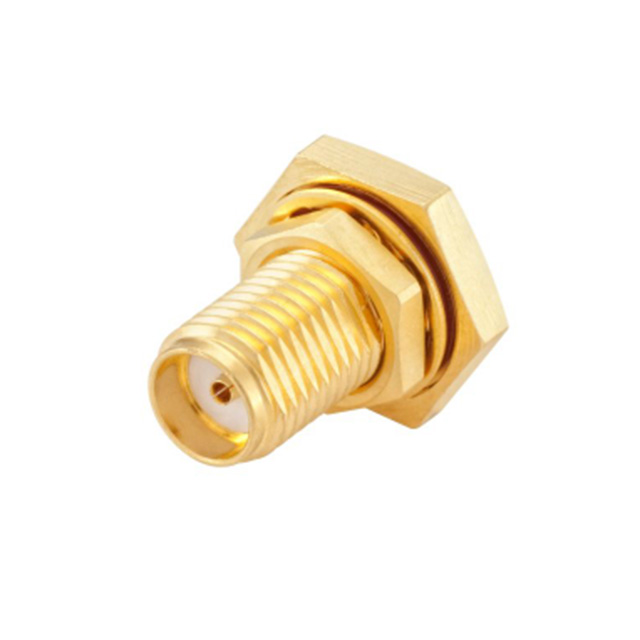

32K601-271L5
CONN SMA JACK STR 50OHM SOLDER

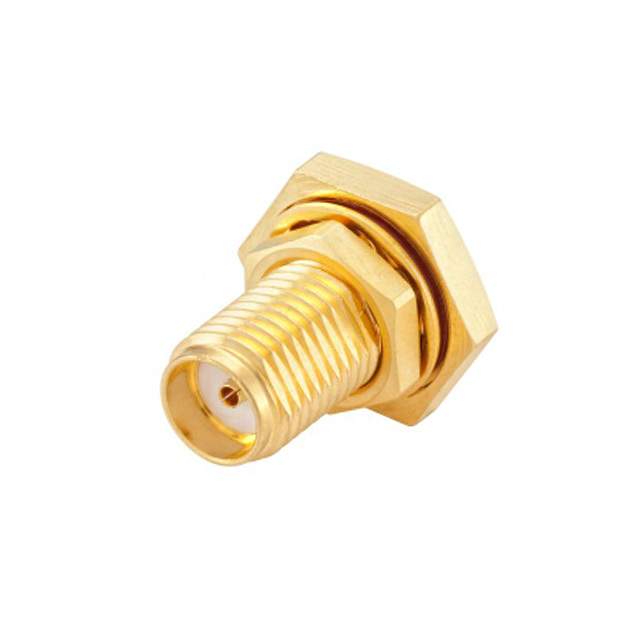

32K601-272L5
CONN SMA JACK STR 50OHM SOLDER

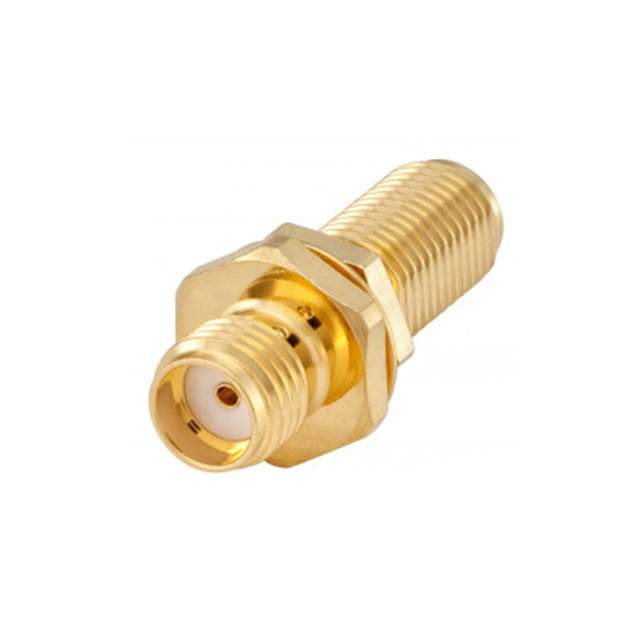

32K601-K00L5
ADAPT SMA JACK - SMA JACK
32K603-200L5
CONN SMA JACK STR 50OHM SOLDER

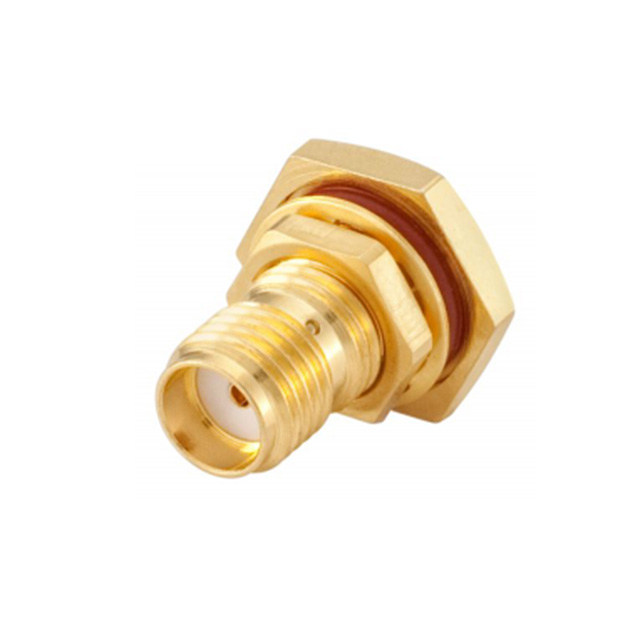

32K607-302L5
CONN SMA JACK STR 50OHM SOLDER

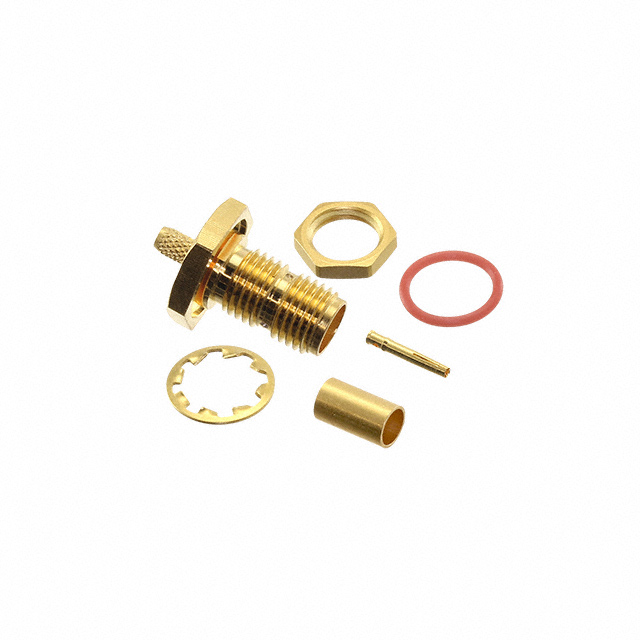

32K607-303L5
