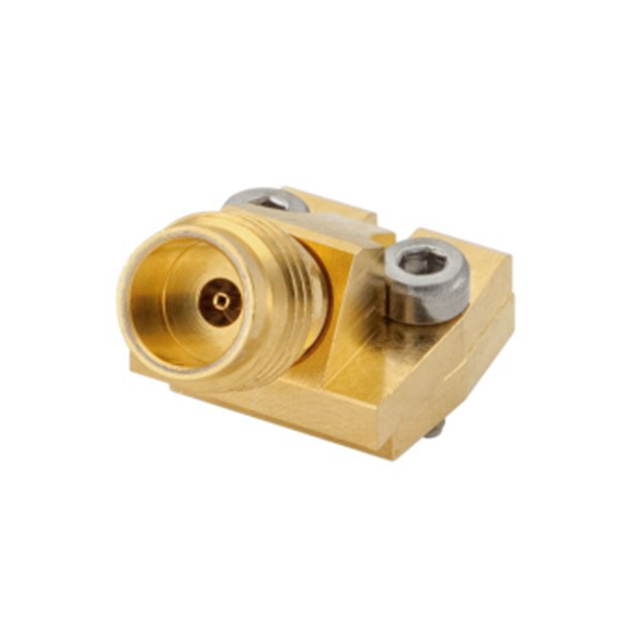

08K80F-40ML5
Coaxial Connectors (RF)
- Manufacturer No:
- 08K80F-40ML5
- Manufacture:
- Rosenberger
- Datasheet:
- 08K80F-40ML5
- Description:
- SMD CONNECTOR JACK
In Stock
0 pcs On sales
$195.4
Product Parameter
- Impedance
- 50Ohm
- Voltage Rating
- 150V
- Packaging
- Bulk
- Connector Style
- 1.85mm
- Body Finish
- -
- Frequency - Max
- 70GHz
- Cable Group
- -
- Number of Ports
- 1
- Part Status
- Active
- Mounting Feature
- -
- Body Material
- -
- Ingress Protection
- -
- Housing Color
- -
- Shield Termination
- Screw
- Mating Cycles
- 500
- Contact Termination
- -
- Mounting Type
- Surface Mount, Right Angle
- Dielectric Material
- Polyetheretherketone (PEEK)
- Series
- RPC
- Connector Type
- Jack, Female Socket
- Operating Temperature
- -40°C ~ 85°C
- Features
- Mounting Hardware
- Fastening Type
- Threaded
- Center Contact Plating
- Gold
- Includes
- 3 pcs - 1 Connector, 2 Screws
- Insertion Loss
- -
- Center Contact Material
- Beryllium Copper
