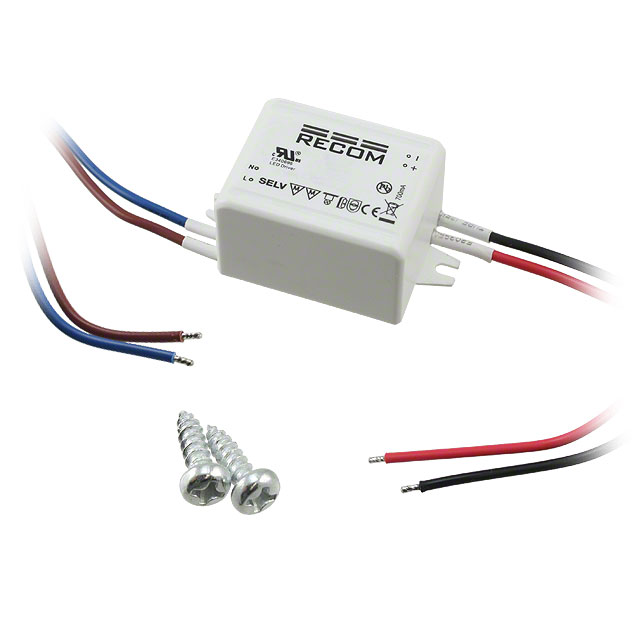

RACD03-350
LED Drivers
- Manufacturer No:
- RACD03-350
- Manufacture:
- RECOM Power
- Datasheet:
- RACD03-350
- Description:
- LED DRVR CC/CV AC/DC 3-12V
In Stock
347 pcs On sales
$10.2
Product Parameter
- Ratings
- IP66
- Voltage - Isolation
- 3kV
- Features
- OCP, OTP, OVP, SCP
- Operating Temperature
- -20°C ~ 50°C
- Topology
- AC DC Converter
- Voltage - Input (Max)
- 264VAC
- Approvals
- CE, cURus, EAC, ENEC
- Voltage - Input (Min)
- 90VAC
- Efficiency
- 72 ~ 78%
- Current - Output (Max)
- 350mA
- Part Status
- Active
- Mounting Type
- Chassis Mount
- Power (Watts)
- 3W
- Type
- Constant Current, Voltage
- Size / Dimension
- 1.81" L x 1.18" W x 0.91" H (46.0mm x 30.0mm x 23.0mm)
- Series
- LIGHTLINE RACD03 (3W)
- Voltage - Output
- 3 ~ 12V
- Weight
- 0.1 lb (45.36 g)
- Number of Outputs
- 1
- Dimming
- -
- Termination Style
- Wire Leads
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
RACD03-350 Relevant information
RACD03-350
LED DRVR CC/CV AC/DC 3-12V

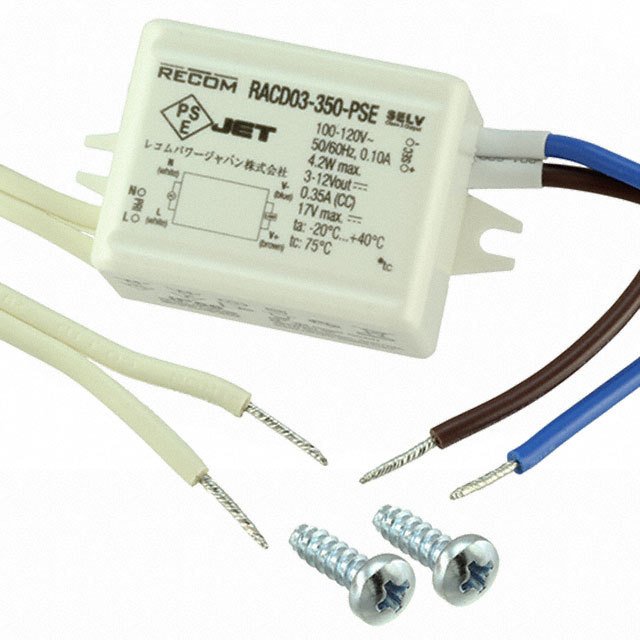

RACD03-350-PSE
LED DRVR CC/CV AC/DC 3-12V 350MA

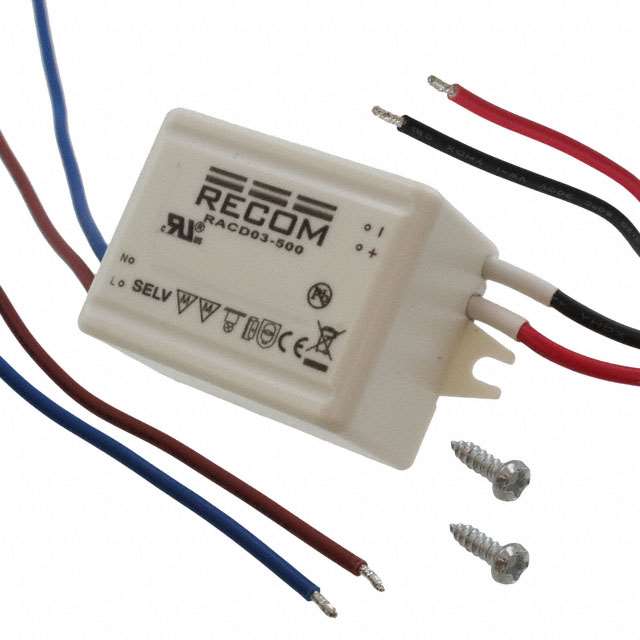

RACD03-500
LED DRVR CC/CV AC/DC 3-9.5V

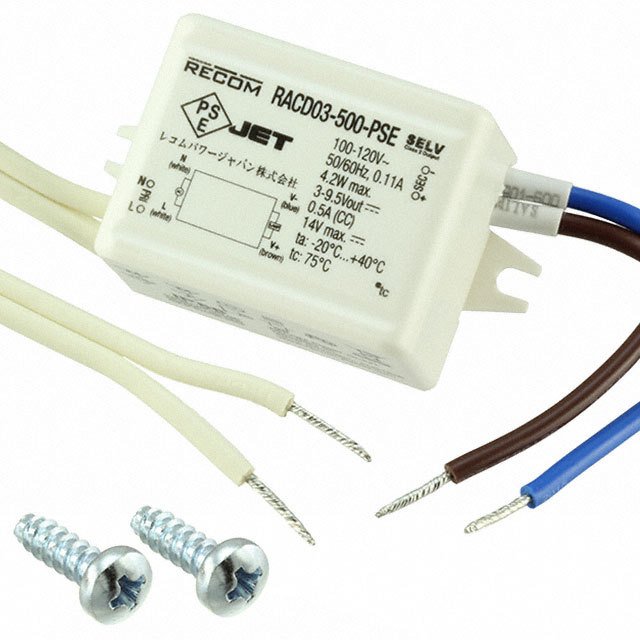

RACD03-500-PSE
LED DRVR CC AC/DC 3-9.5V 500MA
RACD03-700
LED DRVR CC/CV AC/DC 3-4.5V

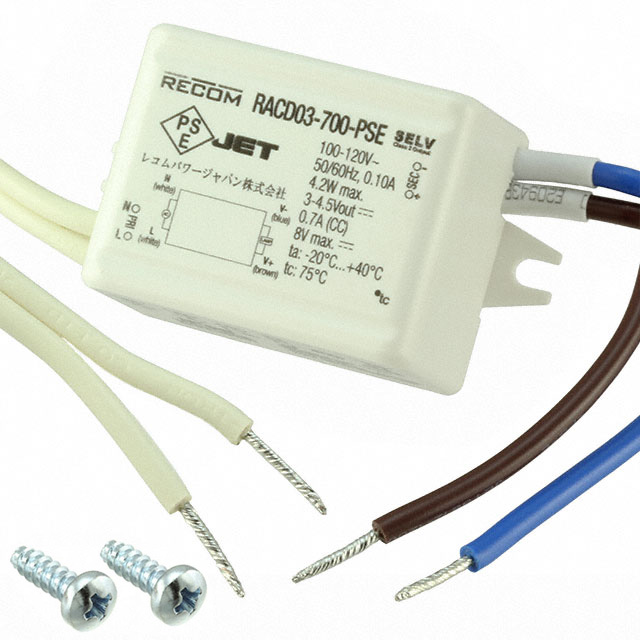

RACD03-700-PSE
