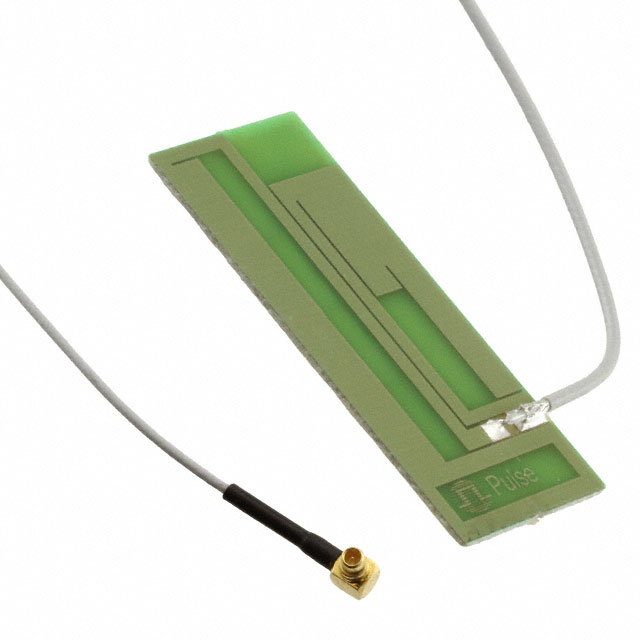

W3538B0150
RF Antennas
- Manufacturer No:
- W3538B0150
- Manufacture:
- PulseLarsen Antennas
- Datasheet:
- W3538B0150
- Description:
- RF ANT 850/900MHZ PCB TRAC 150MM
In Stock
5505 pcs On sales
$3.05
Product Parameter
- Packaging
- Tray
- RF Family/Standard
- Cellular
- Part Status
- Active
- Frequency (Center/Band)
- 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
- Return Loss
- -3dB, -6dB
- Termination
- U.FL (UMCC), IPEX MHF1
- Antenna Type
- PCB Trace
- Applications
- GSM, WCDMA
- Height (Max)
- 0.028" (0.70mm)
- Mounting Type
- Surface Mount
- Gain
- 1.5dBi, 4.5dBi, 3.9dBi
- Frequency Group
- Wide Band
- VSWR
- -
- Frequency Range
- 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
- Series
- -
- Number of Bands
- 5
- Features
- Cable - 150mm
- Ingress Protection
- -
