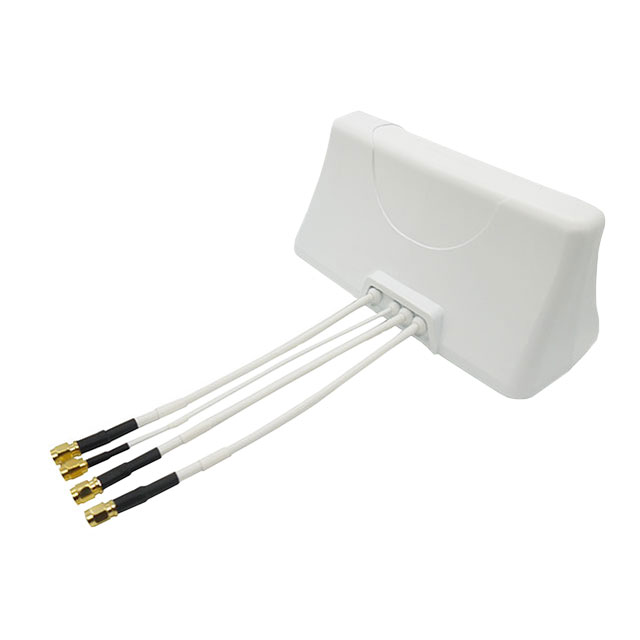

RAZ42111MM
RF Antennas
- Manufacturer No:
- RAZ42111MM
- Manufacture:
- PulseLarsen Antennas
- Datasheet:
- RAZ42111MM
- Description:
- RF ANT 802MHZ/1.582GHZ MOD MAGNT
In Stock
6 pcs On sales
$138.75
Product Parameter
- Antenna Type
- Module
- Applications
- GPS, LTE, Wi-Fi
- Height (Max)
- 3.727" (94.67mm)
- Gain
- 4.6dBi, 4.9dBi, 6dBi, 6.6dBi
- Mounting Type
- Magnetic
- VSWR
- 2
- Frequency Group
- Wide Band
- Series
- RAZORBACK
- Frequency Range
- 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
- Features
- Cable - 5.18m, LNA
- Number of Bands
- 4
- Packaging
- Bulk
- Ingress Protection
- IP67
- Part Status
- Active
- RF Family/Standard
- Cellular, Navigation, WiFi
- Power - Max
- 45W
- Frequency (Center/Band)
- 802MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz
- Return Loss
- -
- Termination
- SMA Male (3), RP-SMA Male (1)
