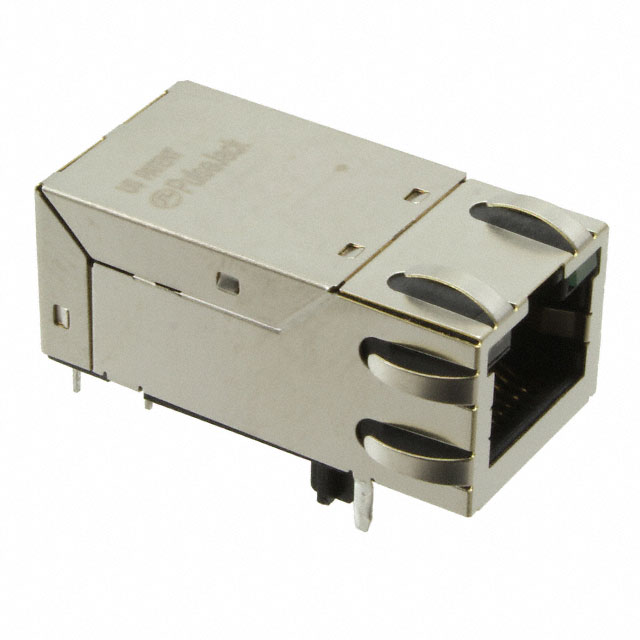

JXK0-0136NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- JXK0-0136NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- JXK0-0136NL
- Description:
- CONN MAGJACK 1PORT 1000 BASE-T
In Stock
1594 pcs On sales
$10.26
Product Parameter
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 8
- Tab Direction
- Up
- Connector Type
- RJ45
- Series
- PULSEJACK™ JXK0
- Contact Finish
- Gold
- Features
- Board Guide
- Number of Rows
- 1
- LED Color
- Yellow, Green - Green
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Copper Alloy
- Shielding
- Shielded, EMI Finger
- Contact Material
- Phosphor Bronze
- Orientation
- 90° Angle (Right)
- Height Above Board
- 0.546" (13.87mm)
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- -40°C ~ 85°C
- Applications
- 10/100/1000 Base-T, AutoMDIX
- Contact Finish Thickness
- 50.0µin (1.27µm)
