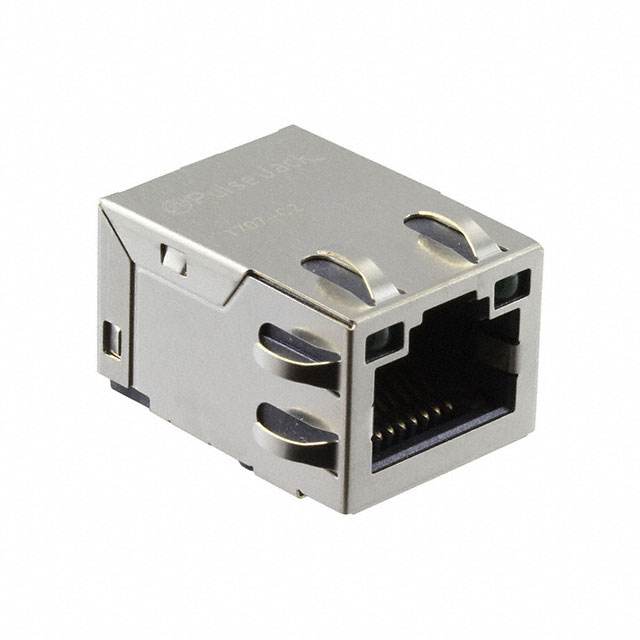

JXD6-0001NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- JXD6-0001NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- JXD6-0001NL
- Description:
- CONN,SMD RJ45,1X1,100D,1:1,GY,EM
In Stock
1371 pcs On sales
$5.38
Product Parameter
- Series
- PULSEJACK™ JXD6
- Contact Finish
- Gold
- Features
- Board Guide
- Number of Rows
- 1
- LED Color
- Green - Yellow
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Brass
- Shielding
- Shielded, EMI Finger
- Contact Material
- Copper Alloy
- Orientation
- 90° Angle (Right)
- Height Above Board
- 0.549" (13.95mm)
- Part Status
- Active
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Termination
- Solder
- Operating Temperature
- -40°C ~ 85°C
- Applications
- -
- Contact Finish Thickness
- 6.00µin (0.152µm)
- Mounting Type
- Surface Mount
- Number of Cores per Jack
- 4
- Tab Direction
- Up
- Connector Type
- RJ45
