JXD3-0002NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- JXD3-0002NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- JXD3-0002NL
- Description:
- CONN MAGJACK 1PORT 1000BASE-T
In Stock
1035 pcs On sales
$7.94
Product Parameter
- Shielding
- Shielded
- Contact Material
- Phosphor Bronze
- Orientation
- Vertical
- Height Above Board
- 0.664" (16.87mm)
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- -40°C ~ 85°C
- Applications
- 10/100/1000 Base-T, AutoMDIX
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 8
- Tab Direction
- User Selectable
- Connector Type
- RJ45
- Series
- PULSEJACK™ JXD3
- Contact Finish
- Gold
- Features
- Board Lock
- Number of Rows
- 1
- LED Color
- Yellow - Green
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Brass
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
JXD3-0002NL Relevant information
JXD3-0001NL
CONN MAGJACK 1PORT 1000BASE-T
JXD3-0002NL
CONN MAGJACK 1PORT 1000BASE-T

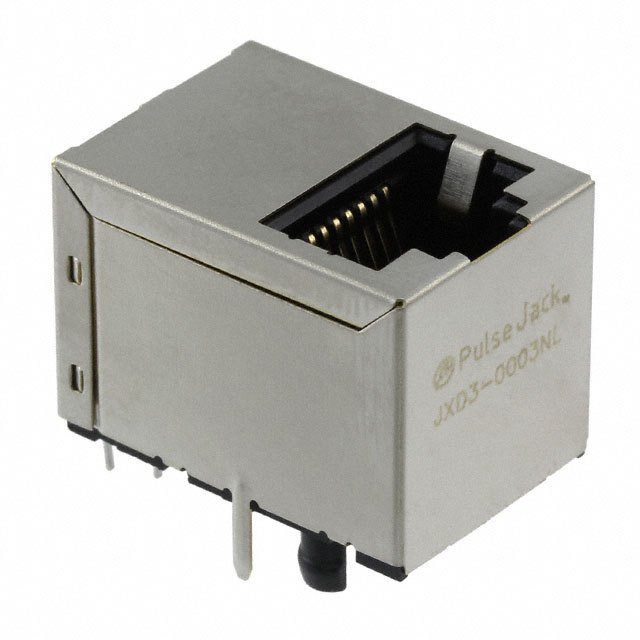

JXD3-0003NL
CONN MAGJACK 1PORT 100BASE-TX

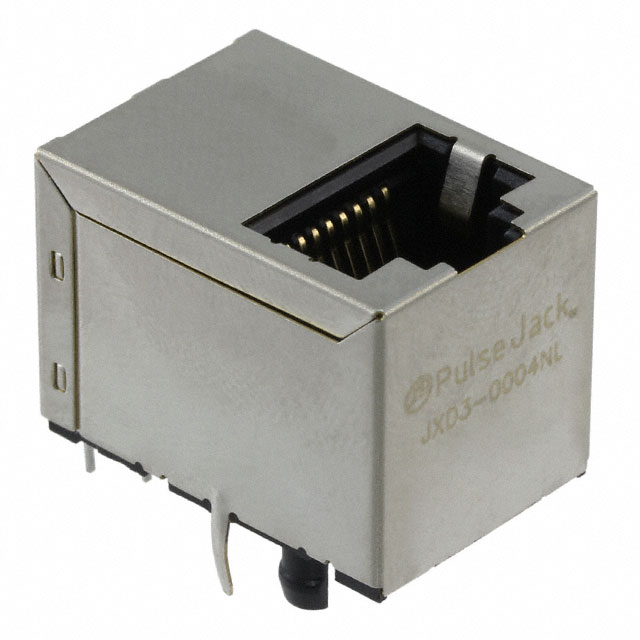

JXD3-0004NL
