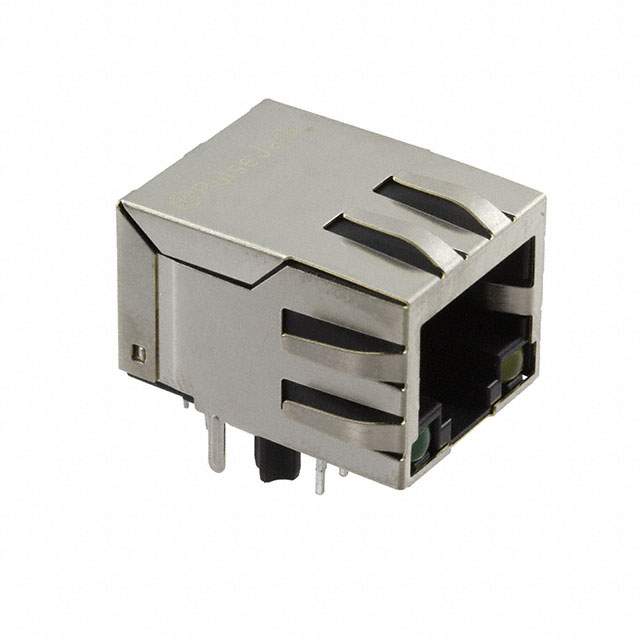

JXD0-0001NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- JXD0-0001NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- JXD0-0001NL
- Description:
- CONN MAGJACK 1PORT 1000BASE-T
In Stock
1672 pcs On sales
$6.53
Product Parameter
- Applications
- 10/100/1000 Base-T, AutoMDIX
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 8
- Tab Direction
- Down
- Connector Type
- RJ45
- Series
- PULSEJACK™ JXD0
- Contact Finish
- Gold
- Features
- Board Guide
- Number of Rows
- 1
- LED Color
- Green - Yellow
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Brass
- Shielding
- Shielded, EMI Finger
- Contact Material
- Phosphor Bronze
- Orientation
- 90° Angle (Right)
- Height Above Board
- 0.537" (13.65mm)
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- -40°C ~ 85°C
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
JXD0-0001NL Relevant information
JXD0-0001NL
CONN MAGJACK 1PORT 1000BASE-T

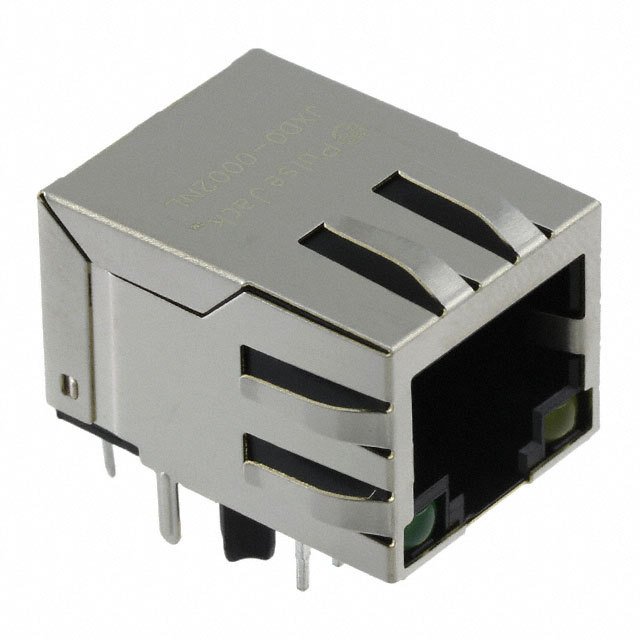

JXD0-0002NL
