JX20-0206NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- JX20-0206NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- JX20-0206NL
- Description:
- CONN MAGJACK 8PORT 100 BASE-TX
In Stock
48 pcs On sales
$39.52
Product Parameter
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 4
- Tab Direction
- Up and Down
- Connector Type
- RJ45
- Series
- PULSEJACK™ JX2
- Contact Finish
- Gold
- Features
- Board Guide
- Number of Rows
- 2
- LED Color
- Does Not Contain LED
- Number of Ports
- 8
- Packaging
- Tray
- Shield Material
- Copper Alloy
- Shielding
- Shielded, EMI Finger
- Contact Material
- Phosphor Bronze
- Orientation
- 90° Angle (Right)
- Height Above Board
- 1.005" (25.53mm)
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- -40°C ~ 85°C
- Applications
- 10/100 Base-TX, AutoMDIX
- Contact Finish Thickness
- 30.0µin (0.76µm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
JX20-0206NL Relevant information

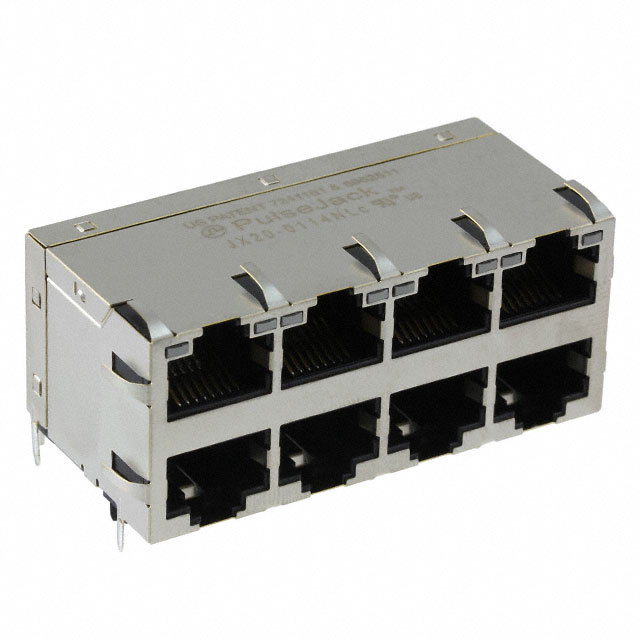

JX20-0114NL
CONN MAGJACK 8PORT 100 BASE-TX
JX20-0115NL
CONN MAGJACK 12PORT 100 BASE-TX
JX20-0116NL
CONN MAGJACK 16PORT 100 BASE-TX
JX20-0206NL
CONN MAGJACK 8PORT 100 BASE-TX

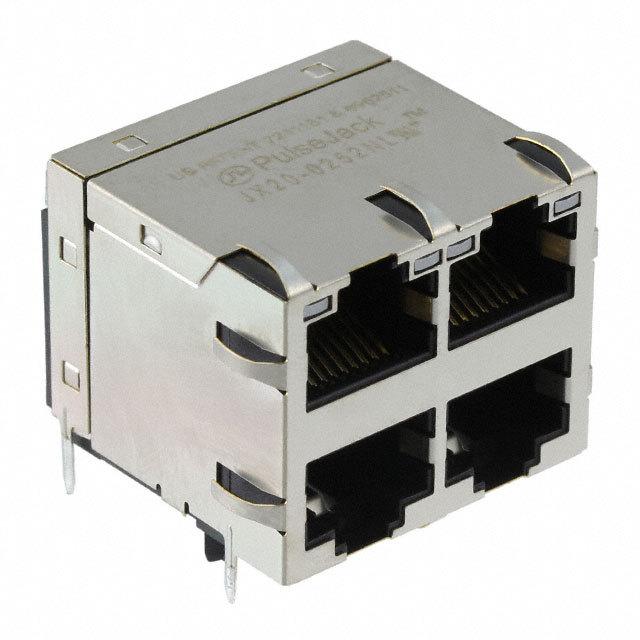

JX20-0252NL
CONN MAGJACK 4PORT 1000 BASE-T

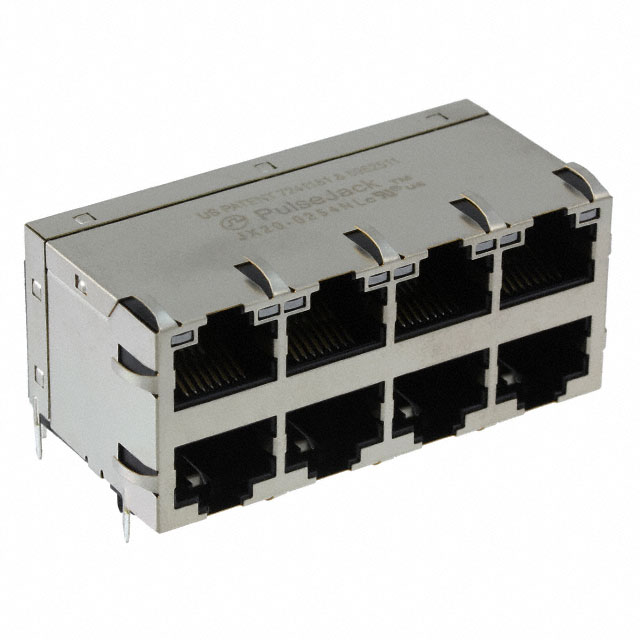

JX20-0254NL
