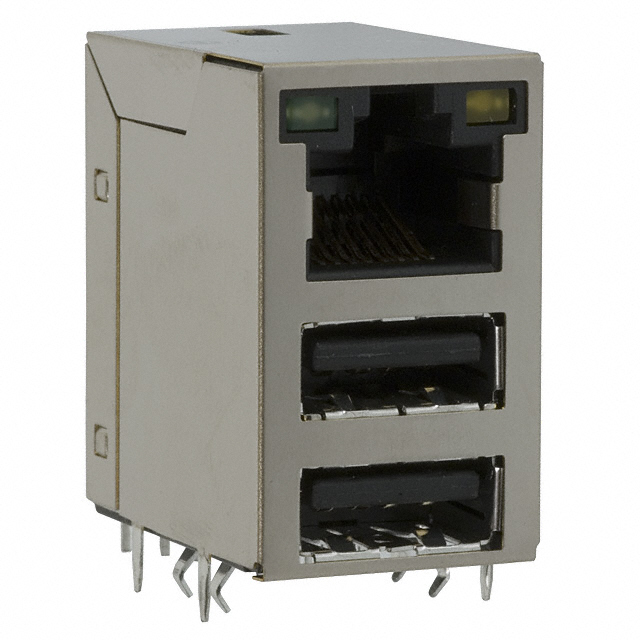

JW0-0013NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- JW0-0013NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- JW0-0013NL
- Description:
- CONN MAGJACK 1PORT 1000 BASE-TX
In Stock
303 pcs On sales
$12.03
Product Parameter
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 8
- Tab Direction
- Up
- Connector Type
- RJ45 with USB A, Dual
- Series
- PULSEJACK™ JW
- Contact Finish
- Gold
- Features
- Board Lock
- Number of Rows
- 1
- LED Color
- Green - Orange, Yellow
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Brass
- Shielding
- Shielded
- Contact Material
- Phosphor Bronze
- Orientation
- 90° Angle (Right)
- Height Above Board
- 1.221" (31.01mm)
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- 0°C ~ 70°C
- Applications
- 10/100/1000 Base-TX, AutoMDIX
- Contact Finish Thickness
- 15.0µin (0.38µm)
