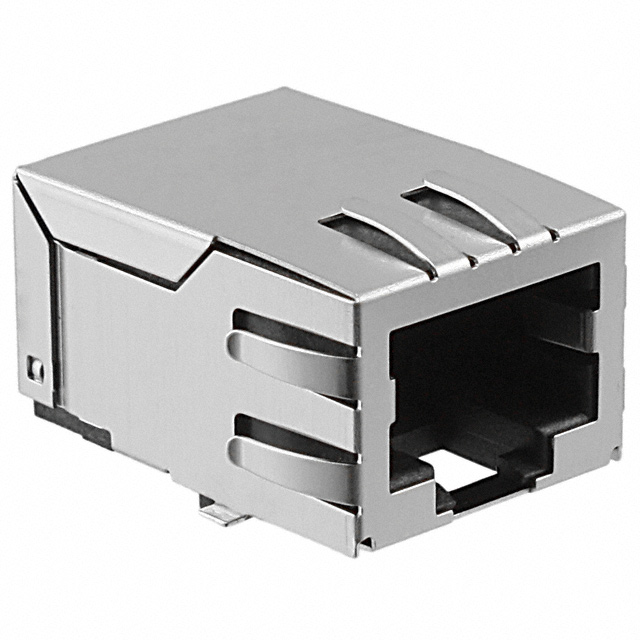

JV011I21NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- JV011I21NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- JV011I21NL
- Description:
- CONN MAGJACK 1PORT 100 BASE-TX
In Stock
196 pcs On sales
$7.82
Product Parameter
- Series
- PULSEJACK™ JV
- Contact Finish
- Gold
- Features
- Board Guide
- Number of Rows
- 1
- LED Color
- Does Not Contain LED
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Brass
- Shielding
- Shielded, EMI Finger
- Contact Material
- Phosphor Bronze
- Orientation
- 90° Angle (Right)
- Height Above Board
- 0.507" (12.88mm)
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- 0°C ~ 70°C
- Applications
- 10/100 Base-TX, AutoMDIX
- Contact Finish Thickness
- 30.0µin (0.76µm)
- Mounting Type
- Surface Mount
- Number of Cores per Jack
- 4
- Tab Direction
- Down
- Connector Type
- RJ45
