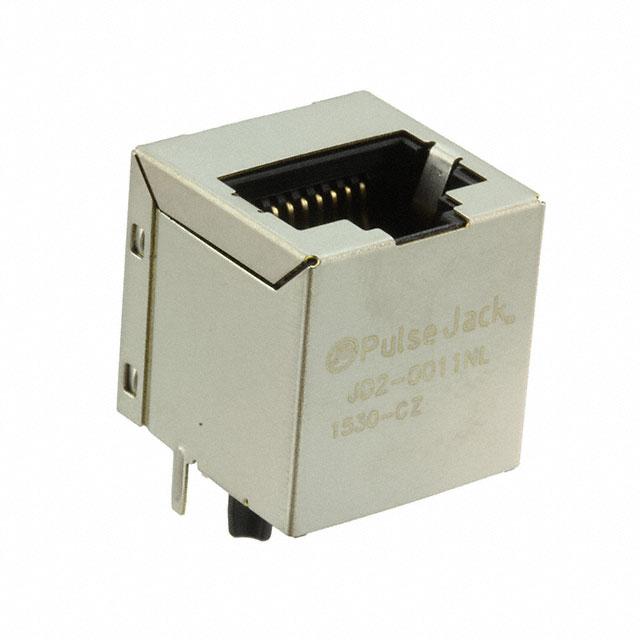

JD2-0001NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- JD2-0001NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- JD2-0001NL
- Description:
- CONN MAGJACK 1PORT 100 BASE-TX
In Stock
4111 pcs On sales
$4.53
Product Parameter
- Series
- PULSEJACK™ JD2
- Contact Finish
- Gold
- Features
- Board Lock
- Number of Rows
- 1
- LED Color
- Green - Yellow
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Brass
- Shielding
- Shielded
- Contact Material
- Copper Alloy
- Orientation
- Vertical
- Height Above Board
- 0.665" (16.90mm)
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- 0°C ~ 70°C
- Applications
- 10/100 Base-TX, AutoMDIX
- Contact Finish Thickness
- 6.00µin (0.152µm)
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 4
- Tab Direction
- User Selectable
- Connector Type
- RJ45
