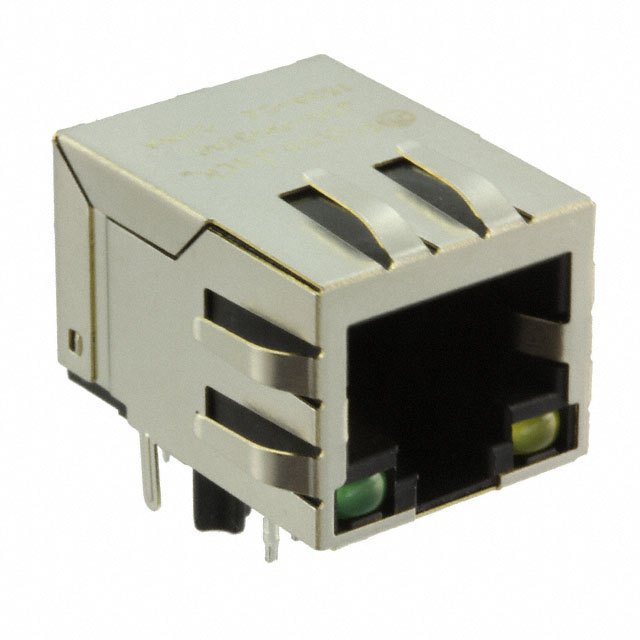

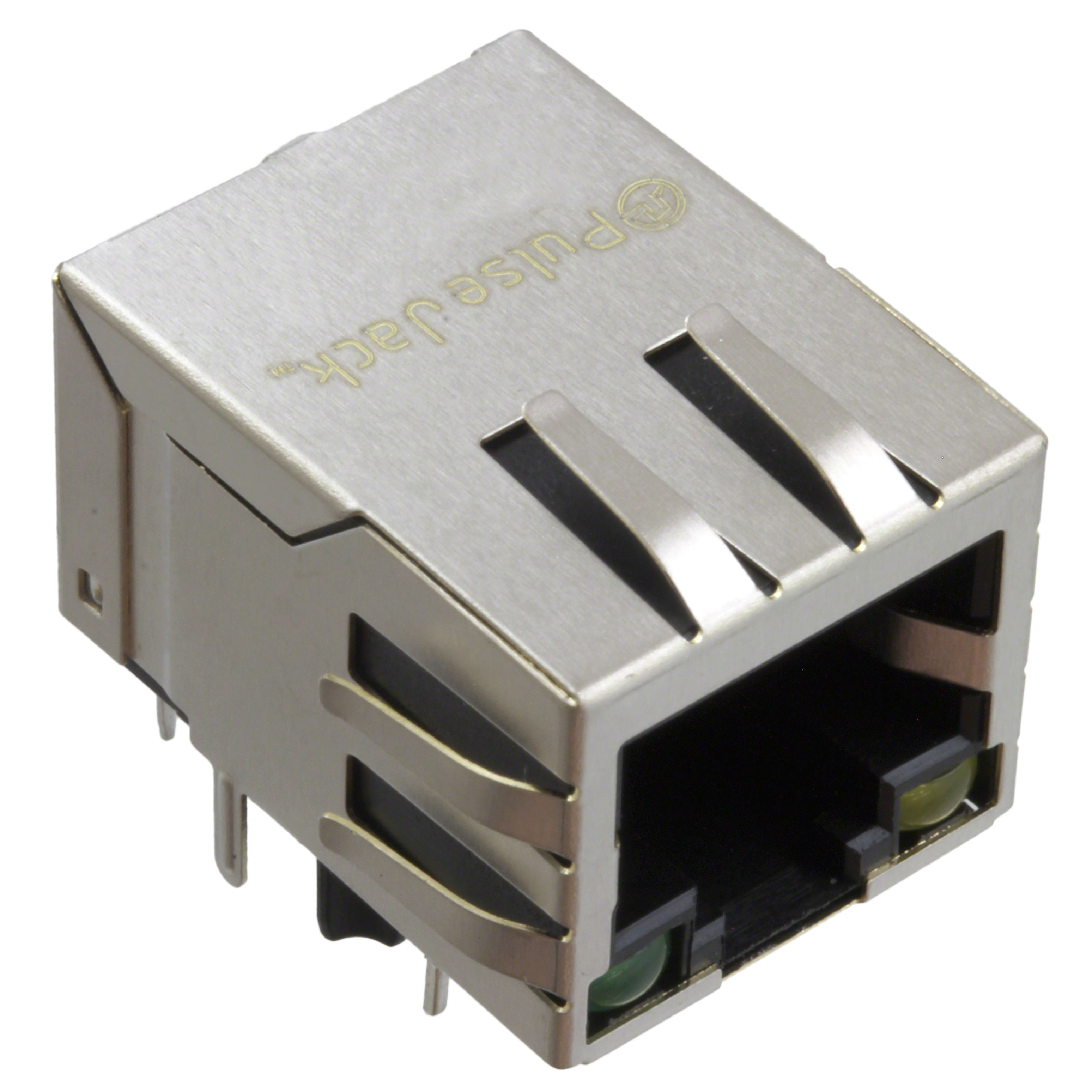

JD0-0001NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- JD0-0001NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- JD0-0001NL
- Description:
- CONN MAGJACK 1PORT 1000 BASE-T
In Stock
903 pcs On sales
$6.07
Product Parameter
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- 0°C ~ 70°C
- Applications
- 10/100/1000 Base-T, AutoMDIX
- Contact Finish Thickness
- 6.00µin (0.152µm)
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 8
- Tab Direction
- Down
- Connector Type
- RJ45
- Series
- PULSEJACK™ JD0
- Contact Finish
- Gold
- Features
- Board Guide
- Number of Rows
- 1
- LED Color
- Green - Yellow
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Brass
- Shielding
- Shielded, EMI Finger
- Contact Material
- Phosphor Bronze
- Orientation
- 90° Angle (Right)
- Height Above Board
- 0.537" (13.65mm)
