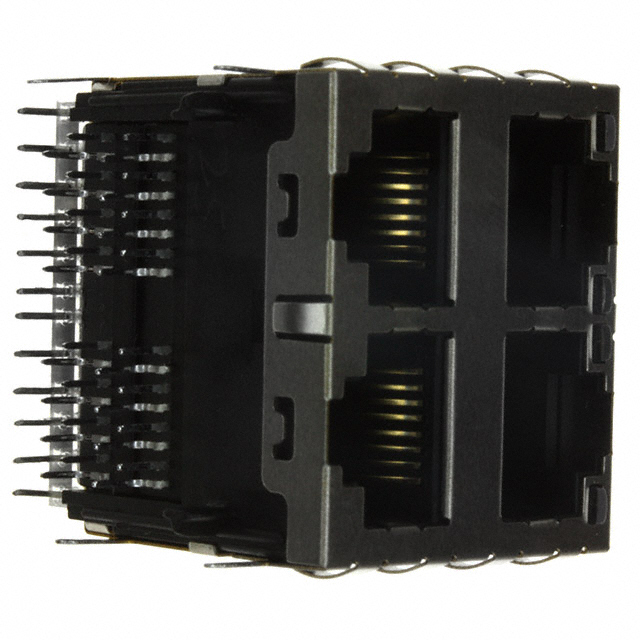

J20-0013NL
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- J20-0013NL
- Manufacture:
- Pulse Electronics Network
- Datasheet:
- J20-0013NL
- Description:
- CONN MAGJACK 4PORT 100 BASE-TX
In Stock
1774 pcs On sales
$22.26
Product Parameter
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 4
- Tab Direction
- Up and Down
- Connector Type
- RJ45
- Series
- PULSEJACK™ J2
- Contact Finish
- Gold
- Features
- Board Guide
- Number of Rows
- 2
- LED Color
- Green, Yellow - Green, Yellow
- Number of Ports
- 4
- Packaging
- Tray
- Shield Material
- Brass
- Shielding
- Shielded, EMI Finger
- Contact Material
- Phosphor Bronze
- Orientation
- 90° Angle (Right)
- Height Above Board
- 1.005" (25.53mm)
- Part Status
- Active
- Dielectric Material
- Thermoplastic
- Termination
- Solder
- Operating Temperature
- 0°C ~ 70°C
- Applications
- 10/100 Base-TX, AutoMDIX
- Contact Finish Thickness
- 30.0µin (0.76µm)
