CS5.243
AC DC Converters
- Manufacturer No:
- CS5.243
- Manufacture:
- PULS, LP
- Datasheet:
- CS5.243
- Description:

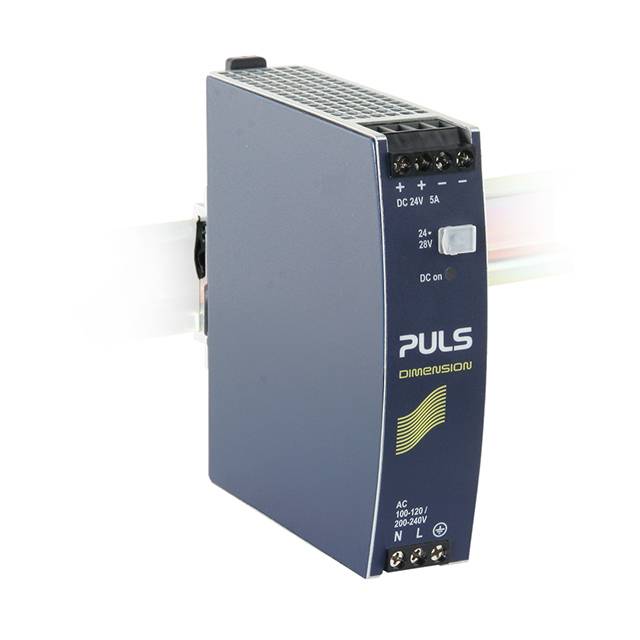

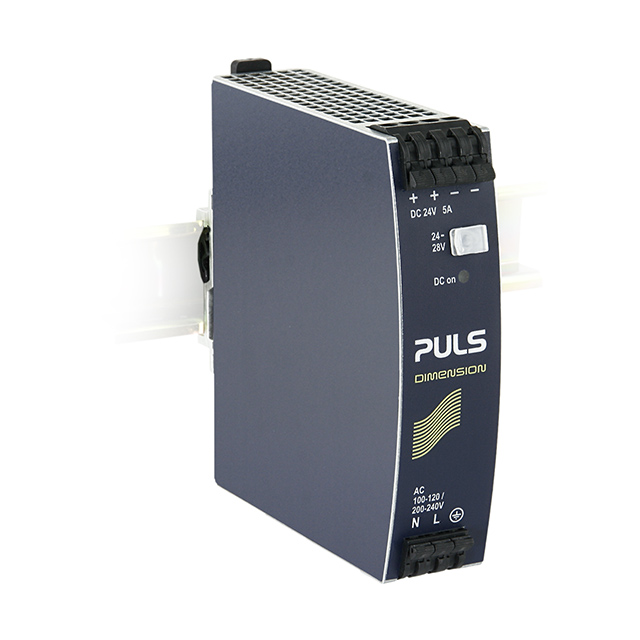

- DIN RAIL PWR SUPPLY 120W 24V 5A
In Stock
8 pcs On sales
$180
Product Parameter
- Power (Watts)
- 120W
- Voltage - Input
- 100 ~ 120 VAC
- Size / Dimension
- 4.61" L x 1.26" W x 4.88" H (117.0mm x 32.0mm x 124.0mm)
- Number of Outputs
- 1
- Type
- Enclosed
- Voltage - Output 1
- 24V
- Series
- DIMENSION C (120W)
- Voltage - Output 2
- -
- Features
- Adjustable Output, Load Sharing
- Voltage - Output 3
- -
- Approvals
- CB, CE, cULus, cURus
- Voltage - Output 4
- -
- Efficiency
- 90%
- Voltage - Isolation
- 500V
- Part Status
- Active
- Minimum Load Required
- -
- Applications
- ITE (Commercial)
- Operating Temperature
- -25°C ~ 70°C (With Derating)
- Mounting Type
- DIN Rail
- Current - Output (Max)
- 5A
