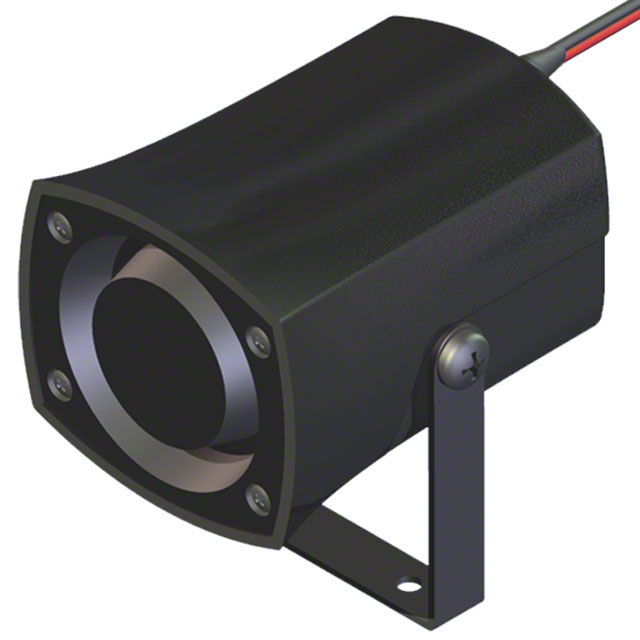

X-5735-LW350-S-R
Alarms, Buzzers, and Sirens
- Manufacturer No:
- X-5735-LW350-S-R
- Manufacture:
- PUI Audio, Inc.
- Datasheet:
- X-5735-LW350-S-R
- Description:
- AUDIO PIEZO IND 5-15V BRACKET
In Stock
0 pcs On sales
$0
Product Parameter
- Series
- X
- Voltage Range
- 5 ~ 15V
- Ratings
- -
- Operating Mode
- Siren
- Duration
- -
- Voltage - Rated
- 12V
- Approvals
- -
- Current - Supply
- 200mA
- Frequency
- 2.5kHz
- Driver Circuitry
- Indicator, Internally Driven
- Packaging
- Bulk
- Size / Dimension
- 2.264" L x 1.752" W (57.50mm x 44.50mm)
- Input Type
- DC
- Height - Seated (Max)
- 1.594" (40.50mm)
- Technology
- Piezo
- Operating Temperature
- -20°C ~ 70°C
- Part Status
- Obsolete
- Sound Pressure Level (SPL)
- 110dB @ 12V, 10cm
- Termination
- Wire Leads
- Mounting Type
- Bracket Mount
- Port Location
- User Defined
