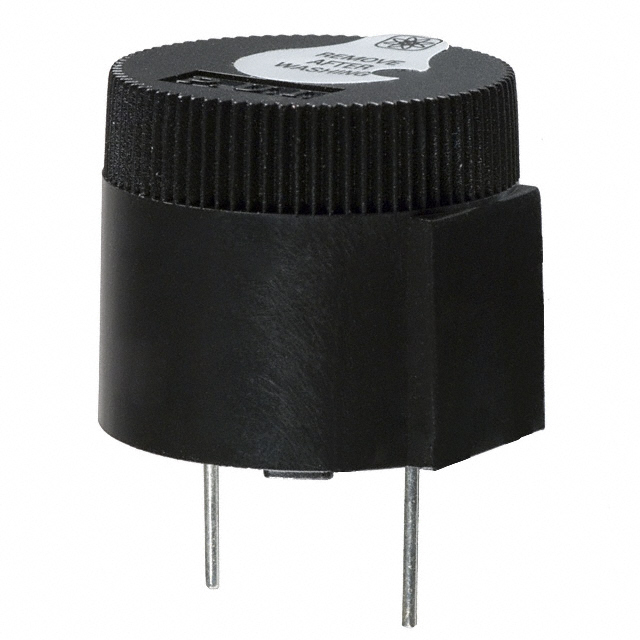

X-2629-TWT-FP-R
Alarms, Buzzers, and Sirens
- Manufacturer No:
- X-2629-TWT-FP-R
- Manufacture:
- PUI Audio, Inc.
- Datasheet:
- X-2629-TWT-FP-R
- Description:
- INDICATOR 12VDC 70MA 110DBA
In Stock
93 pcs On sales
$5.31
Product Parameter
- Part Status
- Active
- Operating Temperature
- -10°C ~ 60°C
- Termination
- PC Pins
- Sound Pressure Level (SPL)
- 107dB @ 12V, 10cm
- Mounting Type
- Through Hole
- Port Location
- Top
- Voltage Range
- 9 ~ 14V
- Series
- X
- Operating Mode
- Single Tone
- Ratings
- Washable
- Voltage - Rated
- 12V
- Duration
- -
- Current - Supply
- 70mA
- Approvals
- -
- Driver Circuitry
- Indicator, Internally Driven
- Frequency
- 2kHz ~ 3kHz
- Size / Dimension
- 0.984" Dia (25.00mm)
- Input Type
- DC
- Ingress Protection
- -
- Technology
- Magnetic
- Height - Seated (Max)
- 0.898" (22.80mm)
