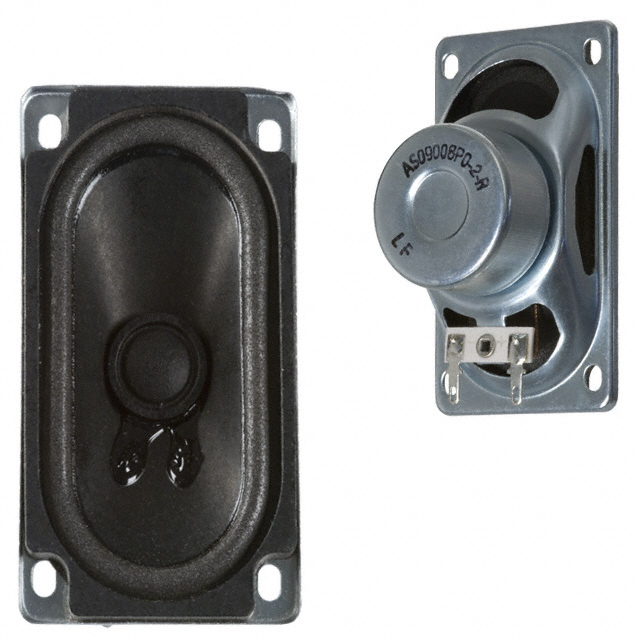

AS09008PO-2-R
Speakers
- Manufacturer No:
- AS09008PO-2-R
- Manufacture:
- PUI Audio, Inc.
- Datasheet:
- AS09008PO-2-R
- Description:
- SPEAKER 8OHM 5W TOP PORT 86DB
In Stock
383 pcs On sales
$5.38
Product Parameter
- Impedance
- 8 Ohms
- Efficiency - Type
- Sound Pressure Level (SPL)
- Packaging
- Bulk
- Material - Magnet
- Ferrite
- Technology
- Magnetic
- Ingress Protection
- -
- Part Status
- Active
- Efficiency - Testing
- 1W/500mm
- Power - Max
- 8W
- Height - Seated (Max)
- 1.555" (39.50mm)
- Termination
- Solder Eyelet(s)
- Frequency - Self Resonant
- 200Hz
- Port Location
- Top
- Power - Rated
- 5W
- Type
- General Purpose
- Frequency Range
- 200Hz ~ 20kHz
- Shape
- Oval, Rectangular Frame
- Material - Cone
- Paper
- Series
- AS
- Efficiency - dBA
- 87.00
- Ratings
- -
- Size / Dimension
- 3.543" L x 1.969" W (90.00mm x 50.00mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
AS09008PO-2-R Relevant information
AS09008PO-2-R
SPEAKER 8OHM 5W TOP PORT 86DB
AS09008PO-2-WR-R
SPEAKER 8OHM 5W TOP PORT 86DB

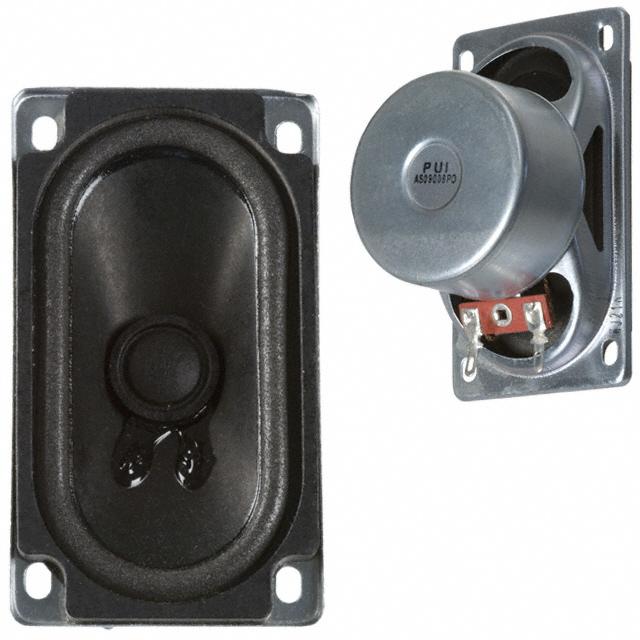

AS09008PO-R
