LQA20B300C
Diodes - Rectifiers - Arrays
- Manufacturer No:
- LQA20B300C
- Manufacture:
- Power Integrations
- Package:

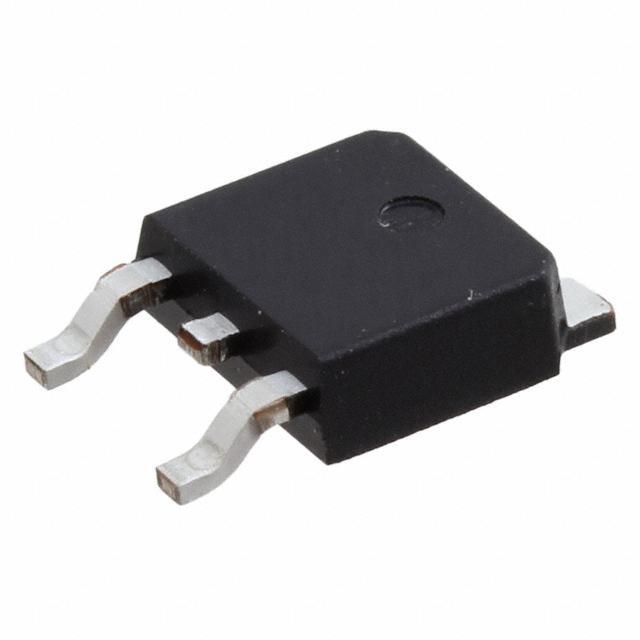

- TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Datasheet:
- LQA20B300C
- Description:
- DIODE RECT GP 300V 10A TO263
In Stock
2871 pcs On sales
$0
Product Parameter
- Packaging
- Digi-Reel®
- Voltage - Forward (Vf) (Max) @ If
- 1.9V @ 10A
- Diode Type
- Standard
- Current - Average Rectified (Io) (per Diode)
- 10A
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Base Part Number
- LQA20B300C
- Diode Configuration
- 1 Pair Common Cathode
- Supplier Device Package
- TO-263AB
- Reverse Recovery Time (trr)
- 12.6ns
- Current - Reverse Leakage @ Vr
- 25µA @ 300V
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Voltage - DC Reverse (Vr) (Max)
- 300V
- Series
- Qspeed™
- Operating Temperature - Junction
- 150°C (Max)
