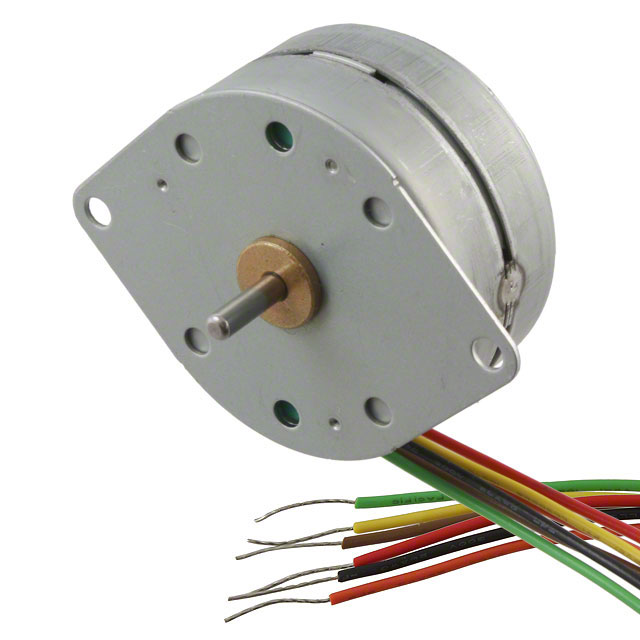

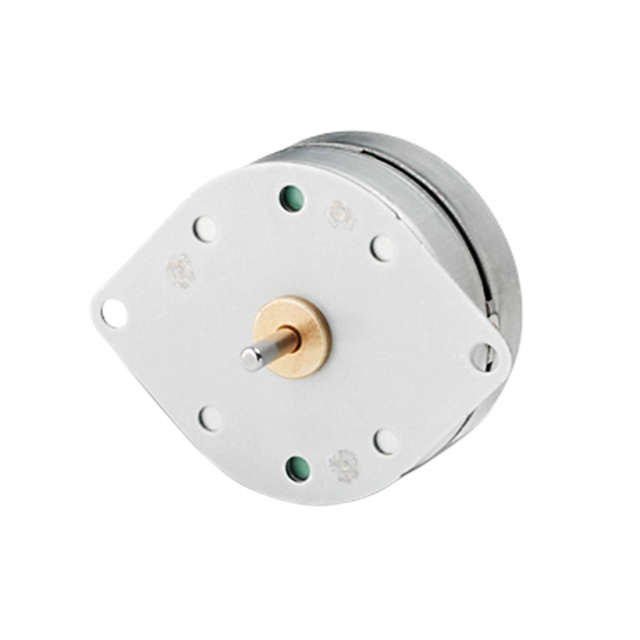

42M048C1B
Stepper Motors
- Manufacturer No:
- 42M048C1B
- Manufacture:
- Portescap
- Datasheet:
- 42M048C1B
- Description:
- STEPPER MOTOR PM BIPOLAR 5V
In Stock
175 pcs On sales
$29.41
Product Parameter
- Weight
- 0.319 lb (144.7 g)
- Termination Style
- Wire Leads
- Accuracy
- ±15%
- Steps per Revolution
- 48
- Features
- Round Shaft
- Current Rating (Amps)
- 550mA
- Approvals
- -
- Mounting Hole Spacing
- 1.950" (49.48mm)
- Coil Type
- Bipolar
- Operating Temperature
- -20°C ~ 70°C
- Step Angle
- 7.5°
- Length - Shaft and Bearing
- 0.450" (11.43mm)
- Part Status
- Active
- Torque - Holding (oz-in / mNm)
- 11.9 / 84
- Rotor Inertia
- 12.5gcm²
- Coil Resistance
- 9.1 Ohms
- Voltage - Rated
- 5VDC
- Type
- Permanent Magnet
- Diameter - Shaft
- 0.118" (3.00mm)
- Series
- 42M
- Size / Dimension
- Round - 1.650" Dia (42.00mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
42M048C1B Relevant information
42M048C1B
STEPPER MOTOR PM BIPOLAR 5V

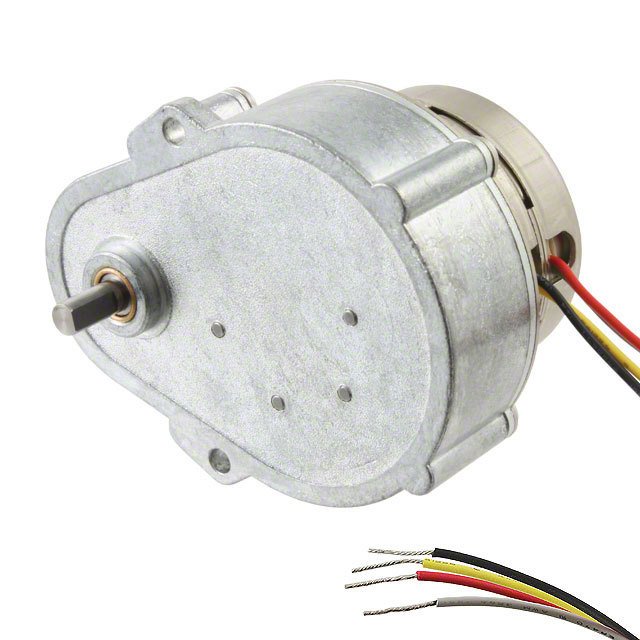

42M048C1B-R16
