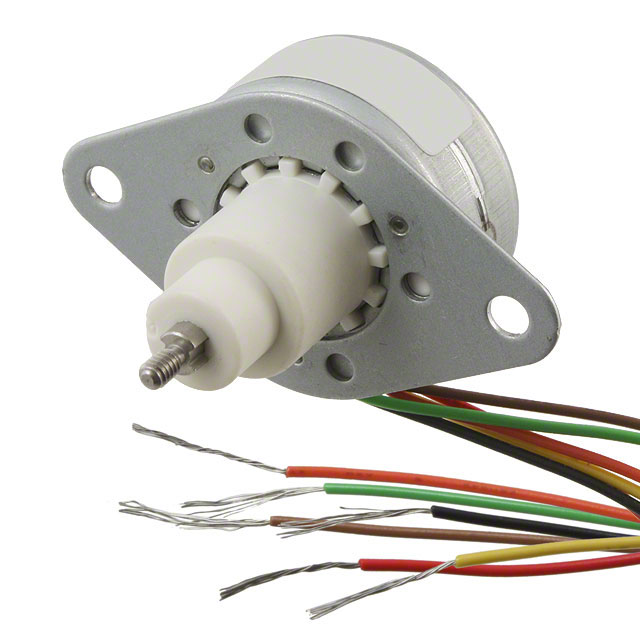

26DBM10D2U-L
Stepper Motors
- Manufacturer No:
- 26DBM10D2U-L
- Manufacture:
- Portescap
- Datasheet:
- 26DBM10D2U-L
- Description:
- STEPPER MOTOR PM LINEAR ACT 12V
In Stock
15 pcs On sales
$57.96
Product Parameter
- Rotor Inertia
- -
- Coil Resistance
- 84 Ohms
- Voltage - Rated
- 12VDC
- Type
- Permanent Magnet Linear Actuator
- Diameter - Shaft
- 0.135" (3.43mm)
- Series
- 26DBM-L
- Size / Dimension
- Round - 1.030" Dia (26.16mm)
- Weight
- 0.075 lb (34.02 g)
- Termination Style
- Wire Leads
- Accuracy
- ±15%
- Steps per Revolution
- 48
- Features
- Threaded Shaft
- Current Rating (Amps)
- 140mA
- Approvals
- -
- Mounting Hole Spacing
- 1.030" (26.16mm)
- Coil Type
- Unipolar
- Operating Temperature
- -20°C ~ 70°C
- Step Angle
- 7.5°
- Length - Shaft and Bearing
- 3.150" (80.00mm)
- Part Status
- Active
- Torque - Holding (oz-in / mNm)
- -
