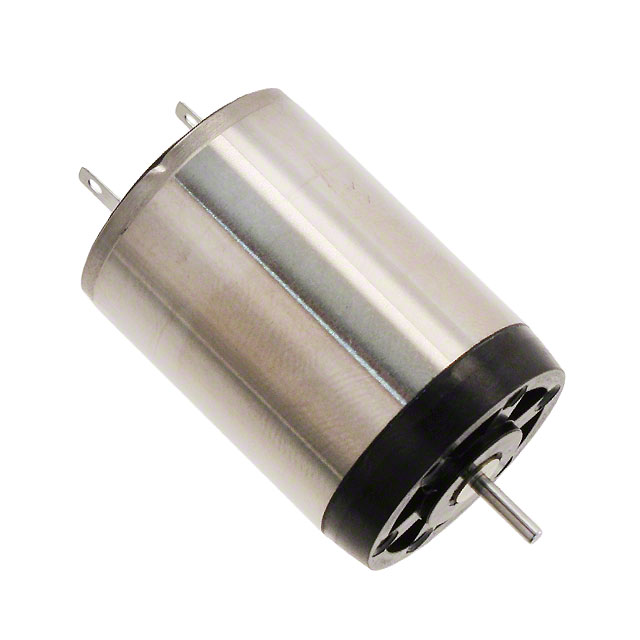

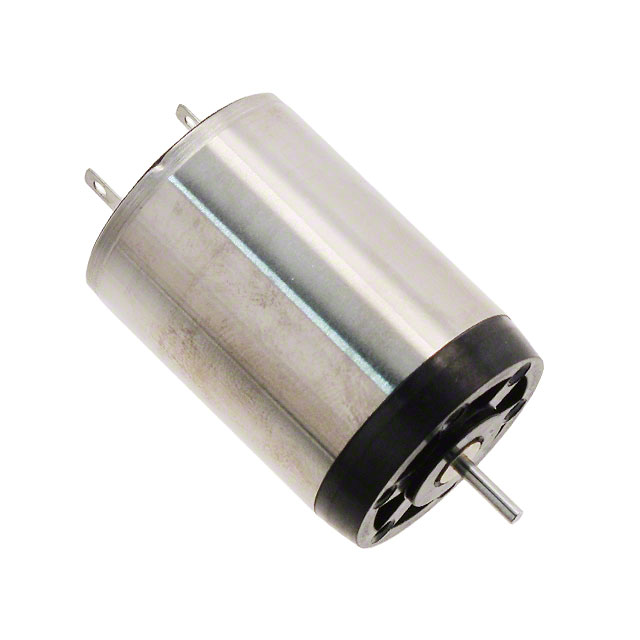

22N78-216E.1001
Motors - AC, DC
- Manufacturer No:
- 22N78-216E.1001
- Manufacture:
- Portescap
- Datasheet:
- 22N78-216E.1001
- Description:
- STANDARD MOTOR 10000 RPM 18VDC
In Stock
0 pcs On sales
$85.23
Product Parameter
- Series
- 22N78 Athlonix
- Termination Style
- Solder Tab
- Weight
- 0.117 lb (53.07 g)
- Gear Reduction Ratio
- -
- Features
- -
- Mounting Hole Spacing
- 0.670" (17.00mm)
- Function
- Standard
- Operating Temperature
- -30°C ~ 85°C
- Approvals
- -
- Length - Shaft and Bearing
- 0.295" (7.50mm)
- Motor Type
- Brushed
- Torque - Rated (oz-in / mNm)
- 1.96 / 13.8
- Part Status
- Active
- Torque - Max Momentary (oz-in / mNm)
- -
- Encoder Type
- -
- Power - Rated
- 11.3W
- Voltage - Rated
- 18VDC
- RPM
- 10000 RPM
- Diameter - Shaft
- 0.059" (1.50mm)
- Type
- DC Motor
- Size / Dimension
- Round - 0.866" Dia (22.00mm)
