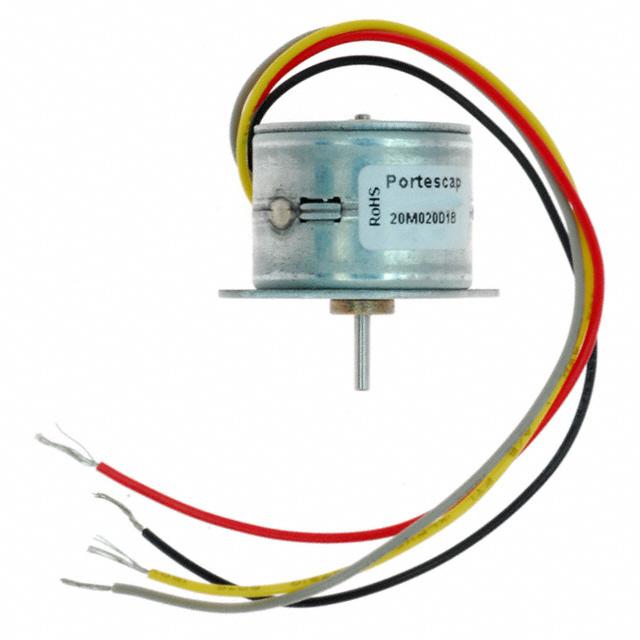

20M020D1U
Stepper Motors
- Manufacturer No:
- 20M020D1U
- Manufacture:
- Portescap
- Datasheet:
- 20M020D1U
- Description:
- STEPPER MOTOR PM UNIPOLAR 5V
In Stock
151 pcs On sales
$24.21
Product Parameter
- Rotor Inertia
- 0.41gcm²
- Coil Resistance
- 115.2 Ohms
- Voltage - Rated
- 5VDC
- Type
- Permanent Magnet
- Diameter - Shaft
- 0.059" (1.50mm)
- Series
- 20M
- Size / Dimension
- Round - 0.807" Dia (20.50mm)
- Weight
- 0.052 lb (23.59 g)
- Termination Style
- Wire Leads
- Accuracy
- ±12%
- Steps per Revolution
- 20
- Features
- Round Shaft
- Current Rating (Amps)
- 100mA
- Approvals
- -
- Mounting Hole Spacing
- 0.984" (25.00mm)
- Coil Type
- Unipolar
- Operating Temperature
- -20°C ~ 70°C
- Step Angle
- 18°
- Length - Shaft and Bearing
- 0.335" (8.50mm)
- Part Status
- Active
- Torque - Holding (oz-in / mNm)
- 1.1 / 7.77
