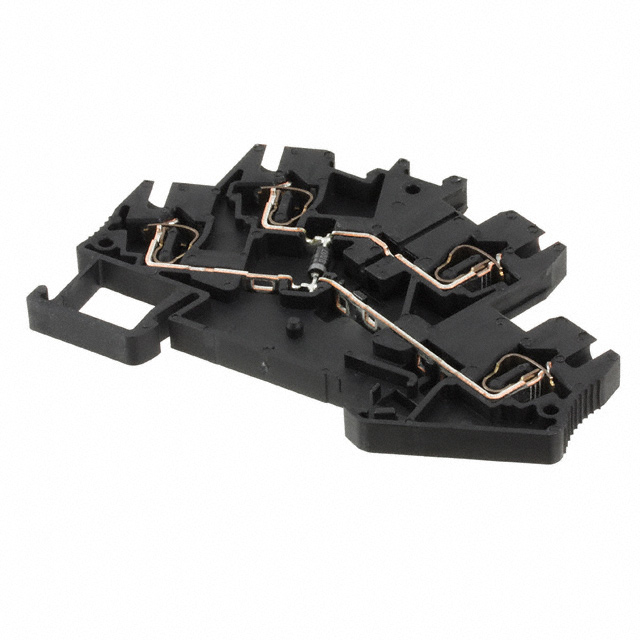

3028937
Terminal Blocks - Din Rail, Channel
- Manufacturer No:
- 3028937
- Manufacture:
- Phoenix Contact
- Datasheet:
- 3028937
- Description:
- CONN TERM BLK FEED THRU 12-28AWG
In Stock
0 pcs On sales
$7.18
Product Parameter
- Features
- Diode
- Number of Positions
- 4
- Fuse Type
- -
- Material - Insulation
- Polyamide (PA), Nylon
- Part Status
- Active
- Wire Gauge or Range - AWG
- 12-28 AWG
- Current - UL
- 20A
- Wire Gauge or Range - mm²
- 0.08-4mm²
- Voltage - UL
- 600V
- Material Flammability Rating
- UL94 V-0
- Current - IEC
- 0.5A
- Voltage - IEC
- 800V
- Disconnect Type
- -
- Number of Levels
- 1
- Type
- Feed Through
- Stripping Length
- 10mm
- Color
- Orange
- Terminal - Width
- 5.2mm
- Series
- CLIPLINE ST
- Termination Style
- Push In, Spring
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
3028937 Relevant information
3028

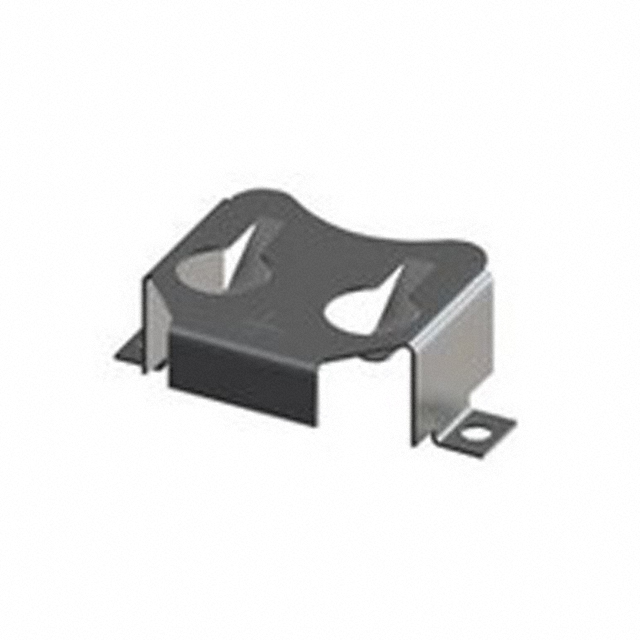

BATTERY HOLDER COIN 20MM SMD
