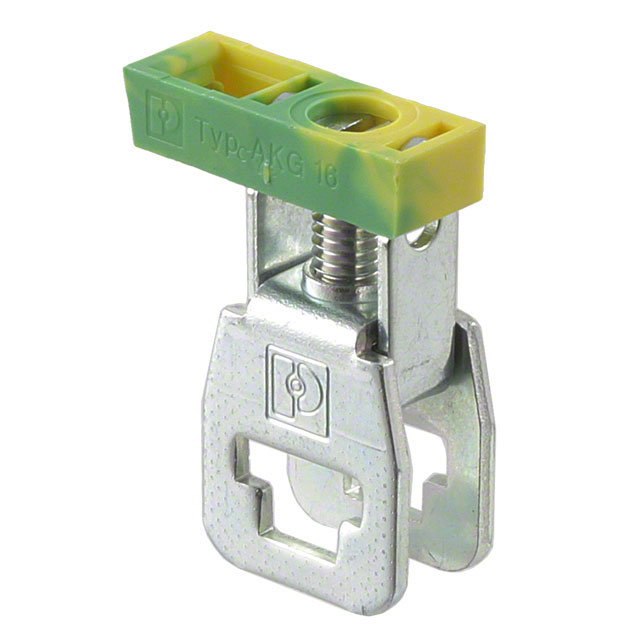

0423030
Terminal Blocks - Specialized
- Manufacturer No:
- 0423030
- Manufacture:
- Phoenix Contact
- Datasheet:
- 0423030
- Description:
- TERM BLK BUS BAR 1POS 9.8MM BLK
In Stock
522 pcs On sales
$2.21
Product Parameter
- Features
- -
- Number of Positions
- 1
- Part Status
- Active
- Material - Insulation
- Polyamide (PA), Nylon
- Current - UL
- 65A
- Operating Temperature
- -
- Height (Max)
- -
- Wire Gauge or Range - AWG
- 6-18 AWG
- Voltage - UL
- 300V
- Wire Gauge or Range - mm²
- 1.5-16mm²
- Current - IEC
- 76A
- Material Flammability Rating
- UL94 V-2
- Housing Color
- Black
- Mounting Type
- Bus Bar
- Number of Levels
- 1
- Type
- Bus Bar - Central
- Stripping Length
- 16mm
- Length
- 0.933" (23.70mm)
- Terminal - Width
- 9.8mm
- Series
- CLIPLINE AKG
- Termination Style
- Screw
