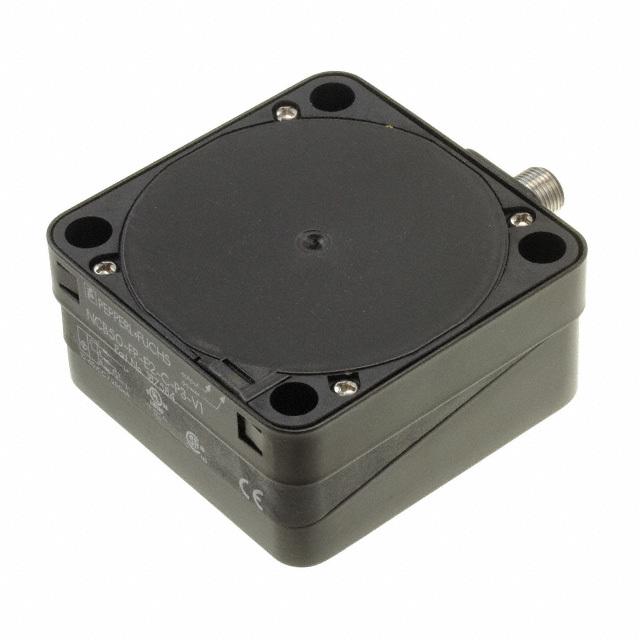

NCB50-FP-A2-C-P3-V1

Proximity Sensors

Manufacturer No:
NCB50-FP-A2-C-P3-V1
Manufacture:
Pepperl+Fuchs, Inc.
Package:
Module
Datasheet:
NCB50-FP-A2-C-P3-V1
Description:
INDUCTIVE SQU SEN 50MM PNP

In Stock

10 pcs On sales

$242.88

Product Parameter

Material - Body
Polybutylene Terephthalate (PBT)
Sensing Distance
1.969" (50mm)
Voltage - Supply
10V ~ 60V
Termination Style
Connector
Ingress Protection
IP68
Series
-
Response Frequency
-
Indicator
LED
Operating Temperature
-25°C ~ 70°C
Shielding
Unshielded
Output Type
PNP-NC/NO, 4-Wire
Part Status
Active
Sensor Type
Inductive
Package / Case
Module
