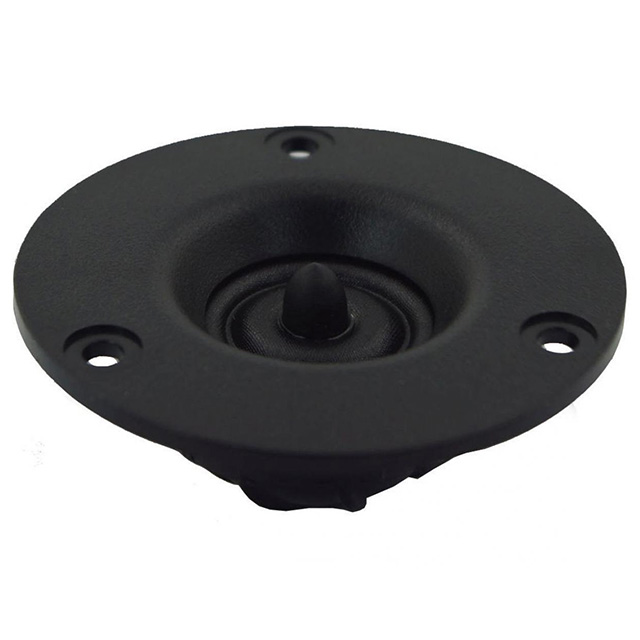

XT19TD00-04
Speakers
- Manufacturer No:
- XT19TD00-04
- Manufacture:
- Peerless by Tymphany
- Datasheet:
- XT19TD00-04
- Description:
- TWEETR 4OHM 120W TOP PORT 85.2DB
In Stock
0 pcs On sales
$23.61
Product Parameter
- Frequency Range
- 700Hz ~ 20kHz
- Type
- Tweeter
- Material - Cone
- Cloth
- Shape
- Round
- Efficiency - dBA
- 85.20
- Series
- XT
- Size / Dimension
- 3.701" Dia (94.00mm)
- Ratings
- -
- Efficiency - Type
- Half Space Sensitivity
- Impedance
- 3.28 Ohms
- Material - Magnet
- Ferrite
- Packaging
- Bulk
- Ingress Protection
- -
- Technology
- Magnetic
- Efficiency - Testing
- 1W/1M
- Part Status
- Active
- Height - Seated (Max)
- 1.439" (36.52mm)
- Termination
- Solder Eyelet(s)
- Frequency - Self Resonant
- 762.77Hz
- Port Location
- Top
- Power - Rated
- 120W
