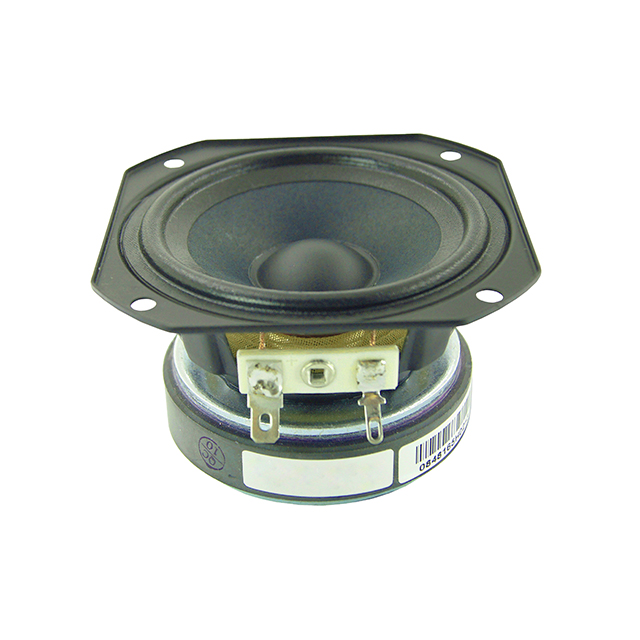

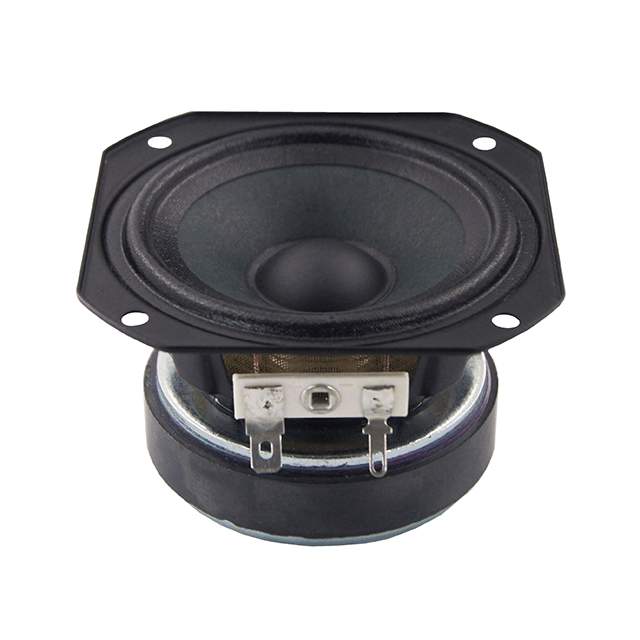

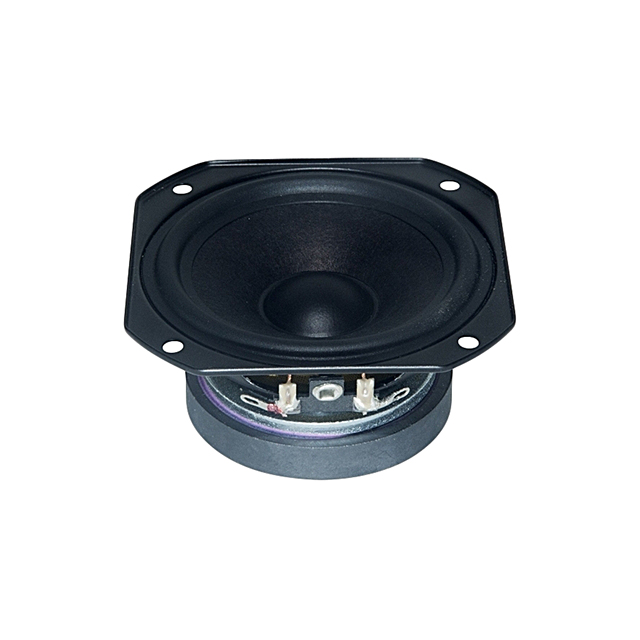

TC8FD00-08
Speakers
- Manufacturer No:
- TC8FD00-08
- Manufacture:
- Peerless by Tymphany
- Datasheet:
- TC8FD00-08
- Description:
- SPEAKER 8OHM 25W TOP PORT 85.1DB
In Stock
0 pcs On sales
$11.49
Product Parameter
- Ratings
- -
- Efficiency - Type
- Half Space Sensitivity
- Impedance
- 8.14 Ohms
- Material - Magnet
- Ferrite
- Packaging
- Bulk
- Ingress Protection
- -
- Technology
- Magnetic
- Efficiency - Testing
- 1W/1M
- Part Status
- Active
- Height - Seated (Max)
- 1.650" (41.90mm)
- Termination
- Solder Eyelet(s)
- Frequency - Self Resonant
- 124.86Hz
- Port Location
- Top
- Power - Rated
- 25W
- Frequency Range
- 130Hz ~ 20kHz
- Type
- Full Range
- Material - Cone
- Paper
- Shape
- Round, Square Frame
- Efficiency - dBA
- 85.10
- Series
- TC
- Size / Dimension
- 3.189" L x 3.189" W (81.00mm x 81.00mm)
